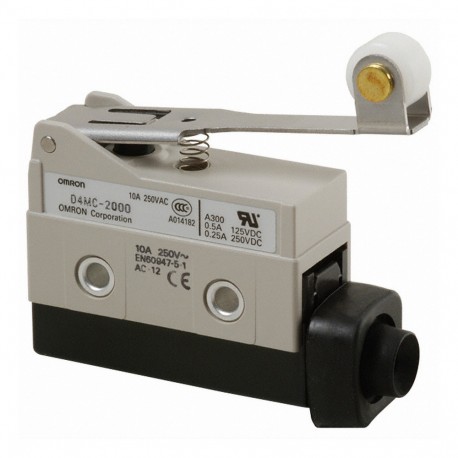

D4MC-2000 D4MC9500A D4MC2000 OMRON Waterproof Lever roller
D4MC-2000
D4MC9500A
D4MC2000
OMRON
10 Pcs.
Automation > End switch
D4MC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Enclosed SwitchD4MC
Economical, High Utility Enclosed
Switch
High precision and long life (10,000,000 mechani- cal operations) through employment of the moving spring used in OMRON Z Basic Switch.
Sealed with gasket diaphragm to provide high sealing property without use of any adhesive or pin.
Suitable for applications demanding higher me- chanical strength, dustproof and drip-proof proper- ties than those on basic switches.
Panel mount versions have the same operating position as Z Basic Switch.
Resin molded terminal versions are available.RC
Ordering Information
Model Number Legend
D4MC-
1
1. Actuator
5000:Panel mount plunger
5020:Panel mount roller plunger
5040:Panel mount crossroller plunger
1020:Short hinge lever
1000:Hinge lever
2000:Hinge roller lever
2020:Short hinge roller lever
3030:One-way action short hinge roller lever
List of Models
Actuator Model
Panel mount plungerD4MC-5000
Panel mount roller plungerD4MC-5020
Panel mount crossroller plungerD4MC-5040
Short hinge leverD4MC-1020
Hinge leverD4MC-1000
Hinge roller leverD4MC-2000
Short hinge roller leverD4MC-2020
One-way action short hinge roller lever D4MC-3030
Note: 1. Use molded terminal models (refer to page 209) when using the Switch under one of the following conditions:
a) dusty, b) high amount of dripping oil, or c) high humidity
2. Micro-load models are available.
e.g. Standard model Micro-load model
D4MC-5020D4MC-5020-C
