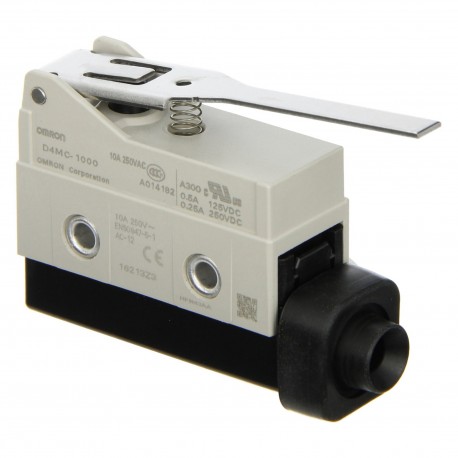

Waterproof Lever Enclosed switch, hinge lever, SPDT, 10 A

Automation > End switch
D4MC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Enclosed SwitchD4MC
Economical, High Utility Enclosed
Switch
High precision and long life (10,000,000 mechani- cal operations) through employment of the moving spring used in OMRON Z Basic Switch.
Sealed with gasket diaphragm to provide high sealing property without use of any adhesive or pin.
Suitable for applications demanding higher me- chanical strength, dustproof and drip-proof proper- ties than those on basic switches.
Panel mount versions have the same operating position as Z Basic Switch.
Resin molded terminal versions are available.RC
Ordering Information
Model Number Legend
D4MC-
1
1. Actuator
5000:Panel mount plunger
5020:Panel mount roller plunger
5040:Panel mount crossroller plunger
1020:Short hinge lever
1000:Hinge lever
2000:Hinge roller lever
2020:Short hinge roller lever
3030:One-way action short hinge roller lever
List of Models
Actuator Model
Panel mount plungerD4MC-5000
Panel mount roller plungerD4MC-5020
Panel mount crossroller plungerD4MC-5040
Short hinge leverD4MC-1020
Hinge leverD4MC-1000
Hinge roller leverD4MC-2000
Short hinge roller leverD4MC-2020
One-way action short hinge roller lever D4MC-3030
Note: 1. Use molded terminal models (refer to page 209) when using the Switch under one of the following conditions:
a) dusty, b) high amount of dripping oil, or c) high humidity
2. Micro-load models are available.
e.g. Standard model Micro-load model
D4MC-5020D4MC-5020-C
1


ETIM for 133872 Sensors (EC000030)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Cuboid
Degree of protection (NEMA) (EF011959) Other
Coating housing (EF001601) Other
Degree of protection (IP) (EF005474) IP67
Alignment of the control element (EF008793) Other
Type of control element (EF006976) Other
Type of interface for safety communication (EF003956) None
Type of electric connection (EF003961) Cable entry metrical
Type of interface (EF006977) None
Switching function (EF000189) Other
Housing material (EF001596) Metal
Explosion safety category for gas (EF003997) None
With status indication (EF001602) No
Suitable for safety functions (EF001597) No
Forced opening (EF006694) Yes
Output electronic (EF006987) No
Number of contacts as change-over contact (EF008257) 1
Number of contacts as normally open contact (EF008256) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 10 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.5 A
Number of safety auxiliary contacts (EF006940) 0
Rated operation current Ie at DC-13, 24 V (EF007087) 6 A
Rated operation current Ie at DC-13, 230 V (EF001386) 0.25 A
Number of contacts as normally closed contact (EF008255) 0
Rated operation current Ie at AC-15, 125 V (EF007082) 10 A
Width sensor (EF007094) 21.7 mm
Height of sensor (EF007283) 47 mm
Length of sensor (EF007334) 70 mm
Ambient temperature during operating (EF007515) -10 °C
