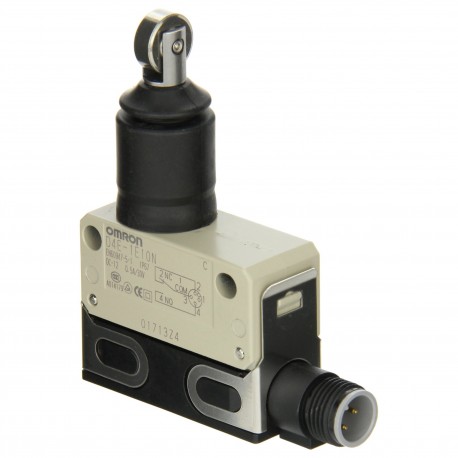

OMRON D4E-1E10N D4E-1E10N D4EN1054H D4E1E10N OMRON Plunger roller plunger cross-sell SPDT 5A Are Connected to DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4E-1E10N D4EN1054H D4E1E10N OMRON Plunger roller plunger cross-sell SPDT 5A Are Connected to DC

D4E-1E10N

D4EN1054H

D4E1E10N

OMRON

10 Pcs.

Plunger roller plunger cross-sell SPDT 5A Are Connected to DC Limit switch, slim sealed, connector type, general purpose, sealed cross roller plunger

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The D4E-1E10N OMRON plunger roller plunger cross-sell is a precise mechanical limit switch designed to track mechanical movement and interface with logic or control systems in industrial environments. Such switches are regularly installed in machine tools, lifts, and automated production cells to halt processes safely when moving components reach boundary points. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam crossed
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Connector M12
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Material housingZincDegree of protection (IP)IP67Actuator typeCrossroller plungerActuator detailSealedConnection methodConnector M12Cable entry directionRightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
