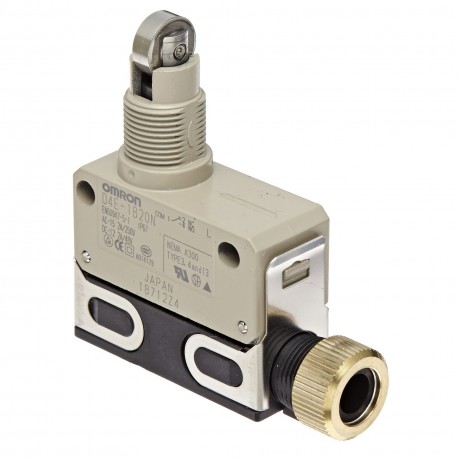

OMRON D4E-1B20N D4E-1B20N D4EN0007M D4E1B20N OMRON Plunger Roller plunger Turned 90 ° 5A Waterproof View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4E-1B20N D4EN0007M D4E1B20N OMRON Plunger Roller plunger Turned 90 ° 5A Waterproof

D4E-1B20N

D4EN0007M

D4E1B20N

OMRON

10 Pcs.

Plunger Roller plunger Turned 90 ° 5A Waterproof Limit switch, slim sealed, screw terminal, general purpose, cross roller plunger

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built with a waterproof roller plunger, the D4E-1B20N Omron limit switch provides dependable position detection in wet or harsh factory environments. Mechanical limit switches are widely integrated into industrial automation loops to monitor moving parts and control operational sequences. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam crossed
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 2 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A

More info

▲
Material housingZincDegree of protection (IP)IP67Actuator typeCrossroller plungerConnection methodTerminal blockCable entry directionRightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
