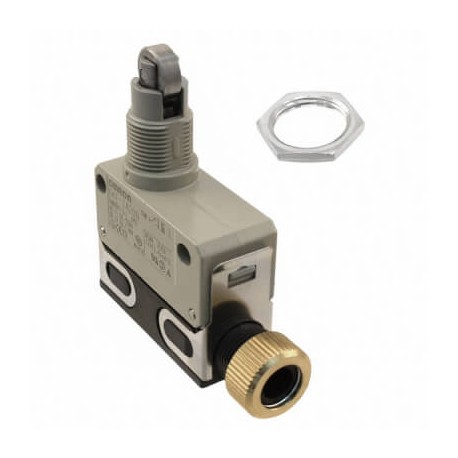

OMRON D4E-1A20N D4E-1A20N D4EN0003H D4E1A20N OMRON Plunger roller plunger SPDT 5A Sealed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4E-1A20N D4EN0003H D4E1A20N OMRON Plunger roller plunger SPDT 5A Sealed

D4E-1A20N

D4EN0003H

D4E1A20N

OMRON

10 Pcs.

Plunger roller plunger SPDT 5A Sealed Limit switch, slim sealed, screw terminal, general purpose, roller plunger

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4E-1A20N is a miniature position switch built for compact installation spaces requiring precise mechanical travel detection. Equipment manufacturers integrate these sealed switches into electronics assembly rigs, packaging machinery, and automated test fixtures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 2 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Material housingZincDegree of protection (IP)IP67Actuator typeRoller plungerConnection methodTerminal blockCable entry directionRightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication
