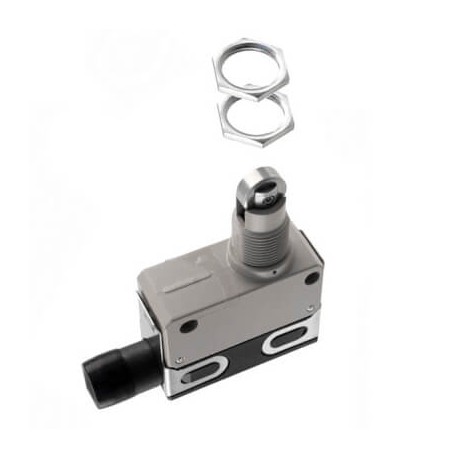

OMRON D4E-1A10N D4E-1A10N D4EN0002M D4E1A10N OMRON Plunger roller plunger SPDT 1A Sealed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4E-1A10N D4EN0002M D4E1A10N OMRON Plunger roller plunger SPDT 1A Sealed

D4E-1A10N

D4EN0002M

D4E1A10N

OMRON

10 Pcs.

Plunger roller plunger SPDT 1A Sealed Limit switch, slim sealed, connector type, general purpose, roller plunger

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A sealed limit switch is designed to operate dependably in harsh industrial settings, offering precise position feedback and object detection for moving machinery. These units are commonly mounted on automated equipment, valves, and conveyance systems to regulate operational cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing: Cuboid
  • Degree of protection (IP): IP67
  • Alignment of the control element: Roller cam straight
  • Type of control element: Plunger
  • Type of electric connection: Connector M12
  • Switching function: Quick-break switch
  • Housing material: Metal
  • With status indication: No
  • Suitable for safety functions: No
  • Forced opening: No
  • Output electronic: No
  • Number of contacts as change-over contact: 1
  • Number of contacts as normally open contact: 0
  • Rated operation current Ie at DC-13, 125 V: 0.05 A
  • Number of safety auxiliary contacts: 0
  • Rated operation current Ie at DC-13, 24 V: 0.5 A

More info

▲
Material housingZincDegree of protection (IP)IP67Actuator typeRoller plungerConnection methodConnector M12Cable entry directionRightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
