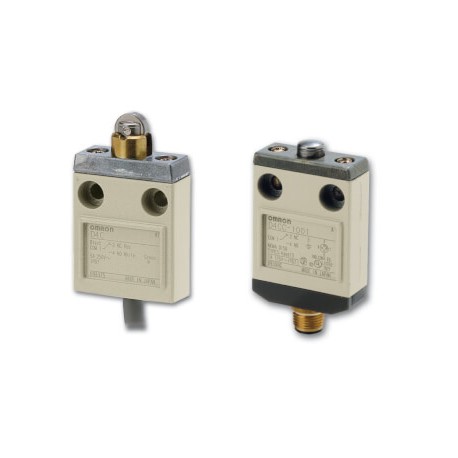

OMRON D4C-1332 D4C-1332 D4CN1332R D4C13325M OMRON Sealed Flat Plunger roller sealed 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4C-1332 D4CN1332R D4C13325M OMRON Sealed Flat Plunger roller sealed 5m

D4C-1332

D4CN1332R

D4C13325M

OMRON

1 Pcs.

Sealed Flat Plunger roller sealed 5m Compact enclosed limit switch, sealed roller plunger, 5 A 250 VAC, 4 A 30 VDC, 5m VCTF oil-resistant cable

Automation > End switch
D4C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4C-1332 is a sealed flat plunger roller limit switch engineered to monitor physical trajectories in automated equipment. Such switches act as reliable feedback sensors in conveyor systems, packaging machinery, and robotic arms, registering the presence or endpoint travel of mechanical components.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller cam
  • Type of electric connection (EF003961): With cable preassembled
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 2 A
  • Number of safety auxiliary contacts (EF006940): 0
