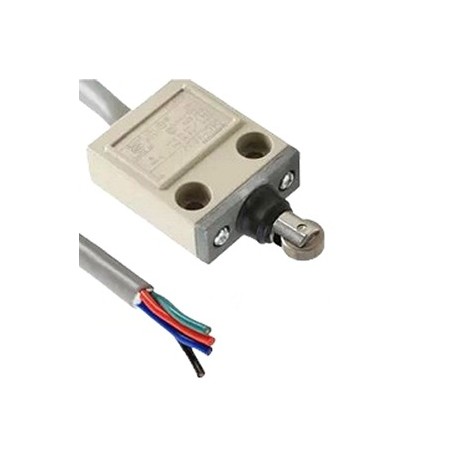

OMRON D4C-1232 D4C-1232 D4CN1232B D4C1232 OMRON Sealed Flat Plunger roller sealed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4C-1232 D4CN1232B D4C1232 OMRON Sealed Flat Plunger roller sealed

D4C-1232

D4CN1232B

D4C1232

OMRON

1 Pcs.

Sealed Flat Plunger roller sealed Compact enclosed limit switch, sealed roller plunger, 5 A 250 VAC, 4 A 30 VDC, 3m VCTF oil-resistant cable

Automation > End switch
D4C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • 16 mm flat compact size
  • Rugged metal housing
  • Models with M12 connector or oil resistant VCTF cable

Specifications & ordering info

Ordering Information

Actuator type

Load range (VDC)1

Operation LED indicator

Connection method

Order code

0.8 W to 60 W max





No

Yes

Plunger


n

■

-

■

2

D4CC-3001

3 m

D4C-1201

-

■

■

D4CC-4001

3 m

D4C-3201

Sealed plunger


■

-

■

D4CC-3031

3 m

D4C-1231

-

■

■

D4CC-4031

3 m

D4C-3231

Plunger with M14 mounting


■

-

■

D4CC-3041

3 m

D4C-1241

-

■

■

D4CC-4041

3 m

D4C-3241

Roller plunger


■

-

■

D4CC-3002

3 m

D4C-1202

-

■

■

D4CC-4002

3 m

D4C-3202

Sealed roller plunger


■

-

■

D4CC-3032

3 m

D4C-1232

-

■

■

D4CC-4032

3 m

D4C-3232

Roller plunger with M14 mounting


■

-

■

D4CC-3042

3 m

D4C-1242

-

■

■

D4CC-4042

3 m

D4C-3242

Crossroller plunger


■

-

■

D4CC-3003

3 m

D4C-1203

-

■

■

D4CC-4003

3 m

D4C-3203

Sealed crossroller plunger


■

-

■

D4CC-3033

3 m

D4C-1233

-

■

■

D4CC-4033

3 m

D4C-3233

Crossroller plunger with M14 mounting


■

-

■

D4CC-3043

3 m

D4C-1243

-

■

■

D4CC-4043

3 m

D4C-3243

Roller lever


■

-

■

D4CC-3024

3 m

D4C-1220

-

■

■

D4CC-4024

3 m

D4C-3220

Coil spring


■

-

■

D4CC-3050

3 m

D4C-1250

-

■

■

D4CC-4050

3 m

D4C-3250

Specifications

Voltage and current rating

Model

Rated voltage

Rated current3

Non-inductive load

Inductive load

Inrush current

Applicable load range
(5 to 30 VDC)

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

NC

NO

D4C-1☐☐☐

125 VAC

5 A

5 A

1.5 A

0.7 A

3 A

3 A

2.5 A

1.3 A

20 A max.

10 A max.

-

250 VAC

2 A

5 A

5 A

1 A

0.5 A

2 A

2 A

1.5 A

0.8 A

8 VDC

5 A

5 A

2 A

2 A

5 A

4 A

3 A

3 A

0.8 W to 60 W

14 VDC

5 A

5 A

2 A

2 A

4 A

4 A

3 A

3 A

30 VDC

2 A

4 A

4 A

2 A

2 A

3 A

3 A

3 A

3 A

125 VDC

0.4 A

0.4 A

0.05 A

0.05 A

0.4 A

0.4 A

0.05 A

0.05 A

-

250 VDC

0.2 A

0.2 A

0.03 A

0.03 A

0.2 A

0.2 A

0.03 A

0.03 A

D4C-3☐☐☐

30 VDC

2 A

4 A

4 A

2 A

2 A

3 A

3 A

3 A

3 A

0.8 W to 60 W

D4CC-3☐☐☐

D4CC-4☐☐☐

30 VDC

1 A

1 A

1 A

1 A

1 A

1 A

1 A

1 A

1 A

5 A max.

2.5 A max

0.8 W to 30 W

D4C-6☐☐☐

30 VDC

0.1 A

0.1 A

0.1 A

-

-

20 A max.

10 A max.

5 mW to 0.8 W

General specifications

Item

D4C-_ (cable types)

D4CC-_ (connector types)

Durability4

Mechanical

10,000,000 operations min

Electrical

200,000 operations min

Operating frequency

Mechanical

120 operations/min

Electrical

30 operations/min

LED indicator

D4C-3_, D4C-6_, D4CC-4_: Operation indicator (red)
Operation indicator turns OFF when the switch operates.5

Ambient temperature

Operating

-10 to 70°C (with no icing)

Degree of protection

IEC 60529: IP67

1.See specifications for details on max. current per rated voltage and load type. Micro load models with 5mW to 0.8W are available. For ordering refer to complete datasheet.

2.Pre-wired models with 30 cm PVC cable and M12 plug (pigtail) are available. Contact your OMRON representative.

3.For D4C- cable types these ratings are certified by TÜV Rheinland according to EN60947-5-1 (file no R9451333).

4.Values are acquired at 5 to 35°C operating temperature, 40% to 70% operating humidity.

5.Models where operation indicator turns ON when the switch operates are available by adding “-B” to the order code. Contact your OMRON representative for availability.


ETIM for 134464 Sensors (EC000030)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Cuboid
Degree of protection (NEMA) (EF011959) Other
Coating housing (EF001601) Other
Degree of protection (IP) (EF005474) IP67
Alignment of the control element (EF008793) Roller cam straight
Type of control element (EF006976) Roller cam
Type of interface for safety communication (EF003956) None
Type of electric connection (EF003961) With cable preassembled
Type of interface (EF006977) None
Switching function (EF000189) Quick-break switch
Housing material (EF001596) Metal
Explosion safety category for gas (EF003997) None
Switching function latching (EF007447) No
With status indication (EF001602) No
Suitable for safety functions (EF001597) No
Forced opening (EF006694) No
Output electronic (EF006987) No
Number of contacts as change-over contact (EF008257) 1
Number of contacts as normally open contact (EF008256) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 2 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.4 A
Number of safety auxiliary contacts (EF006940) 0
Rated operation current Ie at DC-13, 24 V (EF007087) 2 A
Rated operation current Ie at DC-13, 230 V (EF001386) 0.2 A
Number of contacts as normally closed contact (EF008255) 0
Rated operation current Ie at AC-15, 125 V (EF007082) 5 A
Width sensor (EF007094) 40 mm
Height of sensor (EF007283) 65.3 mm
Length of sensor (EF007334) 16 mm
Ambient temperature during operating (EF007515) -10 °C
