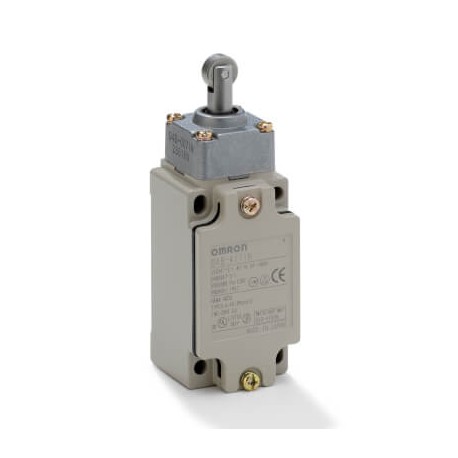

OMRON D4B-4A71N D4B-4A71N D4BN4018G D4B4A71N OMRON Metallic DPDB-2NC Plunger roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4B-4A71N D4BN4018G D4B4A71N OMRON Metallic DPDB-2NC Plunger roller plunger M20

D4B-4A71N

D4BN4018G

D4B4A71N

OMRON

1 Pcs.

Metallic DPDB-2NC Plunger roller plunger M20 Safety Limit switch, D4B, M20, DPDB 2-NC (slow-action), top roller plunger

Automation > End switch
D4B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A D4B-4A71N OMRON Metallic DPDB-2NC Plunger roller plunger M20 functions as a heavy-duty limit switch designed to interrupt or establish electrical circuits based on physical contact with machine components. These devices are implemented across manufacturing systems and conveyance setups to verify mechanical positions and enforce protective interlocks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 6 A

More info

▲
Material housingAluminiumActuator typeRoller plungerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open0Number of contacts, normally-closed2Make before breakSwitch actionSlow actionDirect opening mechanism

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
