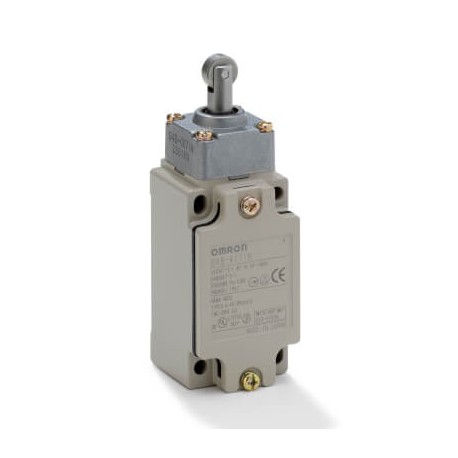

OMRON D4B-4171N D4B-4171N D4BN7008F D4B4171N,1 OMRON Metal SPDT-1NO/1NC. Plunger roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4B-4171N D4BN7008F D4B4171N,1 OMRON Metal SPDT-1NO/1NC. Plunger roller plunger M20

D4B-4171N

D4BN7008F

D4B4171N.1

OMRON

1 Pcs.

Metal SPDT-1NO/1NC. Plunger roller plunger M20 Limit switch, D4B, M20, 1NC/1NO (snap-action), top roller plunger

Automation > End switch
D4B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4B-4171N limit switch features a robust metal roller plunger designed to translate linear mechanical actuation into reliable electrical switching signals. Factories integrate these heavy-duty sensors into production lines to track precise machine travel, detect part presence, and ensure operational limits.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 6 A

More info

▲
Material housingAluminiumActuator typeRoller plungerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap actionDirect opening mechanism

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
