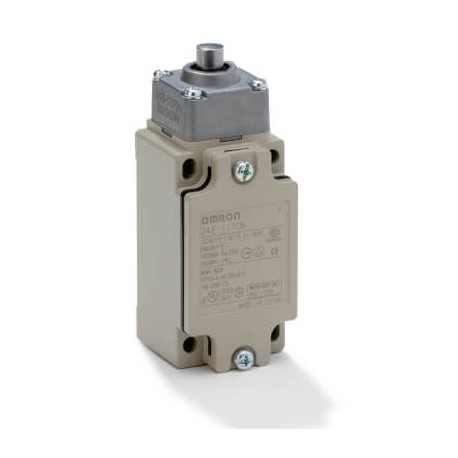

OMRON D4B-4170N D4B-4170N D4BN7007H D4B4170N,1 OMRON Metal SPDT-1NO/1NC. Plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4B-4170N D4BN7007H D4B4170N,1 OMRON Metal SPDT-1NO/1NC. Plunger M20

D4B-4170N

D4BN7007H

D4B4170N.1

OMRON

1 Pcs.

Metal SPDT-1NO/1NC. Plunger M20 Limit switch, D4B, M20, 1NC/1NO (snap-action), top plunger

Automation > End switch
D4B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A metal limit switch, specifically the Omron D4B-4170N, is an electromechanical device deployed in industrial settings to monitor and control machine movement, providing reliable physical contact switching for automation and safety circuits. These components are commonly installed on conveyor systems, robotic cells, and protective guards to signal position limits.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 6 A

More info

▲
Material housingAluminiumActuator typePlungerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap actionDirect opening mechanism

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
