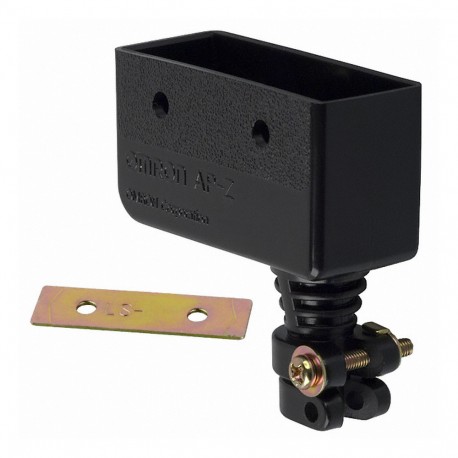

OMRON AP-Z AP-Z AP 8000R APZ OMRON Cover safety Vert for Z15 Term.torn./welding View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AP-Z AP 8000R APZ OMRON Cover safety Vert for Z15 Term.torn./welding

AP-Z

AP 8000R

APZ

OMRON

20 Pcs.

Cover safety Vert for Z15 Term.torn./welding Soldering or Screw Terminal Use (Vinyl Chloride) for Z15 switch

Automation > Accessories/spare parts for position switches
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Shielding delicate connection points from environmental debris, the Omron AP-Z dust protection cover is engineered for Z15 series basic switches with terminal and wiring configurations. Protective terminal covers are standard additions in machine control panels to prevent accidental contact, dust accumulation, and particulate interference on exposed connection terminals. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • 125 VAC: 15 A
  • 250 VAC: 15 A
  • 8 VDC: 15 A
  • 14 VDC: 15 A
  • 30 VDC: 6 A
  • 125 VDC: 0.5 A 3
  • Durability: Mechanical
  • Electrical: 500,000 operations min.
  • Operating speed: Plunger
  • Operating frequency: Mechanical
  • Electrical: 20 operations/min
  • Ambient temperature: Operating
  • Degree of protection: IP00
  • metal: AP1-A
  • Type of accessory/spare part (EF000215): Dust protection cover
  • Accessory (EF013236): Yes

More info

▲
  • Cost efficient basic plastic housing for subassemblies
  • Same electrical and mechanical switching ratings as standard limit switches

Specifications & ordering info

Ordering information

Actuator type1

Order code2

Solder terminal

Screw terminal

Pin plunger

Z-15G

Z-15G-B

Short spring plunger

Z-15GD

Z-15GD-B

Leaf spring

Z-15GL

Z-15GL-B

Reverse hinge lever

Z-15GM

Z-15GM-B

Reverse hinge roller lever

Z-15GM2

Z-15GM2-B

Plunger with M12 mounting

Z-15GQ

Z-15GQ-B

Hinge lever

Z-15GW

Z-15GW-B

Hinge roller lever

Z-15GW2

Z-15GW2-B

Specifications

Rated voltage

Non-inductive load

Inductive load

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

125 VAC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

250 VAC

15 A

2.5 A

1.25 A

15 A

3 A

1.5 A

8 VDC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

14 VDC

15 A

3 A

1.5 A

10 A

5 A

2.5 A

30 VDC

6 A

3 A

1.5 A

5 A

5 A

2.5 A

125 VDC

0.5 A3

0.5 A

0.5 A

0.05 A

0.05 A

0.05 A

Durability

Mechanical

10,000,000 operations min.

Electrical

500,000 operations min.

Operating speed

Plunger

0.01 mm to 1 m/s

Operating frequency

Mechanical

240 operations/min

Electrical

20 operations/min

Ambient temperature

Operating

-25 to 80°C (with no icing)

Degree of protection

IP00

Accessories

Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)

Type

Material

Order code

for soldering terminal models

for screw terminal models

Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch.

plastic

AP-A

AP-B

metal

AP1-A

AP1-B

Cover with bottom cable exit

AP-Z


1.Other actuator types are available. For the full range refer to the complete datasheet.

2.Contacts are directly accessible. Additional protective measures are required e.g. order covers from accessories.

3.For switching high currents at high voltages (e.g. 10A at 125VDC) contact your OMRON representative.
