OMRON D5A-3310 D5A-3310 D5A 3310G D5A3310 OMRON FC High precision 3micras Plunger needle M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D5A-3310 D5A 3310G D5A3310 OMRON FC High precision 3micras Plunger needle M8

D5A-3310

D5A 3310G

D5A3310

OMRON

1 Pcs.

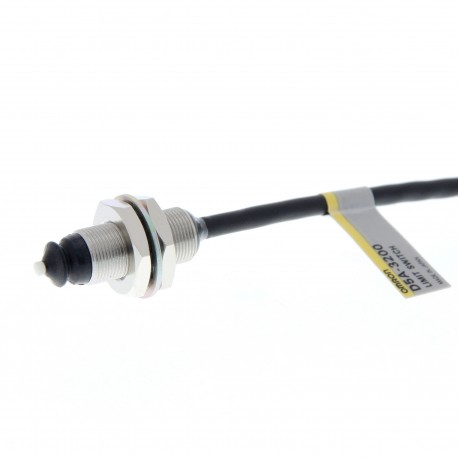

FC High precision 3micras Plunger needle M8 FC High precision 3micras M8 needle plunger Limit switch, high precision, pin plunger

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The D5A-3310 high-precision limit switch from Omron offers exacting position detection for delicate mechanical applications and automated measurement setups. High-precision switches are commonly applied where microscopic tolerances and accurate repeatability are required in manufacturing processes. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): With cable preassembled
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 1
  • Diameter sensor (EF007111): 8 mm
  • Length of sensor (EF007334): 28 mm
  • Ambient temperature during operating (EF007515): -20 °C

More info

▲

High-precision Switch
D5A
High-precision Switch for Detecting
Micron-unit Displacement
■ Ideal for detecting and measuring wear of cutting tools or for original point of work.
■ Direct input possible to microprocessors and pro- grammable controllers.
■ Types available with built-in operation indicator for ease of operation monitoring as well as a version with fiber optics remote operation indicator.
■ A version with screw-type cable connector avail- able for easy installation and maintenance.
Application Examples
Origin Position Control of an X-Y Table
Checking Turret Indexing Position
Turret
Motor
D5A
Motor
D5A
Note: Origin can be set to a desired position and the origin position can be controlled using the D5A.
Coaxiality Inspection
Note: Set the D5A on the turret indexing position to check if the turret is engaged properly at the specified position.
D5A
D5A
Note: The D5A can be mounted on a jig used for checking deviation to inspect its coaxiality.
271


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
