View larger
Images are for illustrative purposes only. Please refer to data sheet for details

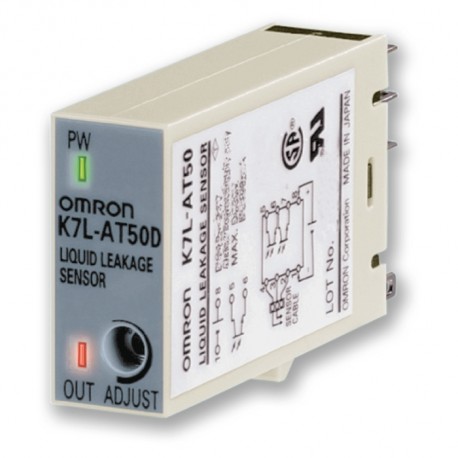

K7L-AT50 K7L 1001G K7LAT50 OMRON Leak Detector liquids High impedance
K7L-AT50
K7L 1001G
K7LAT50
OMRON
1 Pcs.
Leak Detector liquids High impedance
Liquid leakage sensor, conductive, minature plug-in, adjustable sensitivity settings - 250 Kohm up to 50 Mohm (requires P2RFZ-08-E socket)
Automation > (Fill) level monitoring relay
K7L
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
FunctionsLiquid leakage detectionCable length10 mInstallation typeSocketTerminal typePlug-inSize15.5 mmSupply voltage DC12-24 VOutput typePNP/NPNContact descriptionOpen collectorNumber of inputs for electrodes2
| Feature Name | Feature Value |
|---|---|
| Physical measurement principle (EF008238) | Conductive |
| Type of electric connection (EF003961) | Plug-in connection |
| Voltage type (supply voltage) (EF002991) | DC |
| Cascadable (EF000507) | No |
| With detachable clamps (EF003340) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Width (EF000008) | 15.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Max. permitted operate delay time (EF008194) | 0.8 s |
| Height (EF000040) | 90 mm |
| Max. permitted off-delay time (EF008191) | 0.8 s |
| Depth (EF000049) | 83 mm |
| Number of inputs for electrodes (EF003427) | 2 |
| Supply voltage DC (EF007534) | 12 V |
