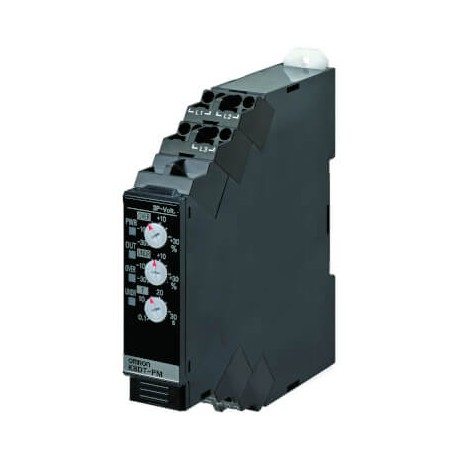

OMRON K8DT-PM2CN K8DT-PM2CN K8DT0044M K8DTPM2CN OMRON Three-phase Voltage Max / Min+Sequence+Per phase, 380-480AC SPDT 17.5 m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8DT-PM2CN K8DT0044M K8DTPM2CN OMRON Three-phase Voltage Max / Min+Sequence+Per phase, 380-480AC SPDT 17.5 m..

K8DT-PM2CN

K8DT0044M

K8DTPM2CN

OMRON

1 Pcs.

Three-phase Voltage Max / Min+Sequence+Per phase, 380-480AC SPDT 17.5 mm Push-in+ Monitoring relay 17.5mm wide, over/under voltage, phase sequence and loss, 3-phase 3-wire, 380 to 480 VAC, 1 x SPDT

Automation > Phase monitoring relay
K8DT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A K8DT-PM2CN K8DT0044M K8DTPM2CN OMRON Three-phase Voltage Max / Min+Sequence+Per phase, 380-480AC SPDT 17.5 m.. functions as a dedicated monitoring relay that tracks line voltage limits and phase parameters to secure industrial installations. By isolating power feeds during critical power anomalies, this hardware prevents expensive damage to automated drives and distribution systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Spring clamp connection
  • Voltage type (supply voltage) (EF002991): AC
  • With detachable clamps (EF003340): No
  • Phase imbalance monitoring (EF003416): No
  • Phase sequence monitoring (EF003412): No
  • Function under voltage detection (EF003414): Yes
  • Function over voltage detection (EF003415): Yes
  • Phase failure detection (EF003413): Yes
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Min. adjustable delay-on energization time (EF008190): 0.1 s
  • Max. permitted delay-on energization time (EF008189): 30 s
  • Width (EF000008): 17.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 90 mm
  • Max. permitted off-delay time (EF008191): 0.25 s

More info

▲
FunctionsOver/under voltage, Phase loss, Phase sequenceInstallation typeDIN railTerminal typePush-inSize17.5 mmConnection method3-wireSupply voltage AC380-480 VOutput typeRelayContact descriptionSPDTBody colorBlack

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
