View larger
Images are for illustrative purposes only. Please refer to data sheet for details

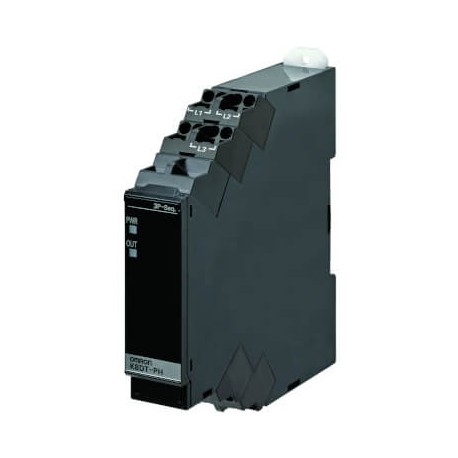

K8DT-PH1TN K8DT0042D K8DTPH1TN OMRON Three-phase sequence+Loss phase transistor 200-480 VAC 17.5 mm Push-in+
K8DT-PH1TN
K8DT0042D
K8DTPH1TN
OMRON
1 Pcs.
Three-phase sequence+Loss phase transistor 200-480 VAC 17.5 mm Push-in+
Monitoring relay 17.5mm wide, phase sequence and loss in 3 phase 3 wire, 200-480 VAC, 1 x Transistor
Automation > Phase monitoring relay
K8DT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
FunctionsPhase loss, Phase sequenceInstallation typeDIN railTerminal typePush-inSize17.5 mmConnection method3-wireSupply voltage AC200-480 VOutput typeTransistorContact descriptionOpen collectorBody colorBlack
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Spring clamp connection |
| Voltage type (supply voltage) (EF002991) | AC |
| With detachable clamps (EF003340) | No |
| Phase imbalance monitoring (EF003416) | No |
| Phase sequence monitoring (EF003412) | No |
| Function under voltage detection (EF003414) | No |
| Function over voltage detection (EF003415) | No |
| Phase failure detection (EF003413) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Max. permitted delay-on energization time (EF008189) | 0.15 s |
| Width (EF000008) | 17.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 380 V |
| Supply voltage AC 60 Hz (EF007533) | 380 V |
| Voltage measuring range (EF002486) | 200 V |
