View larger
Images are for illustrative purposes only. Please refer to data sheet for details

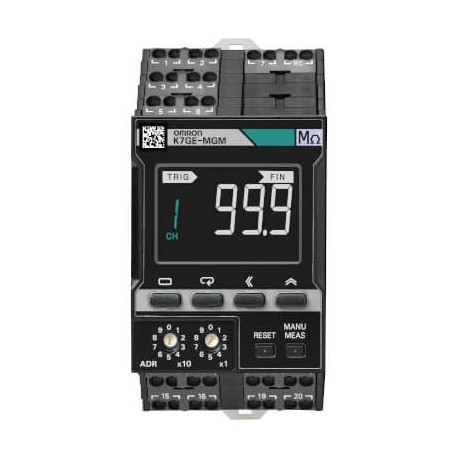

K7GE-MGMD K7GE0002G K7GEMGMD OMRON Insulation Resistance Monitoring Device for 3-phase & servo motors, pumps..
K7GE-MGMD
K7GE0002G
K7GEMGMD
OMRON
1 Pcs.
Insulation Resistance Monitoring Device for 3-phase & servo motors, pumps and heaters, 24 VAC/VDC, transistor control output, Push-in Plus, LCD displa
Automation > Accessories/spare parts for low-voltage switch technology
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Supply voltage AC20.4-26.4 VSupply voltage DC20.4-26.4 VApplicable motor typeAC motor, DC motor, Servo motorApplicationDetection of poor insulation of electric heater, Detection of poor insulation when motor stopsMegger voltage50 VResistance range0-99.9 MohmNumber of digital outputs4Output typeNPN, TransistorProduct Width (unpacked)45 mmProduct Height (unpacked)90 mmProduct Depth (unpacked)91.9 mmCommunication port(s)CompoWay/F, MODBUS RTU, Serial RS-485Mounting methodDIN railMounting positionController: panel, Probe unit: panel (up to 8 per each controller)Setup methodFree softwareUser interfaceCondition monitoring software tool, Front LED, LCD screen
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Test device |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
