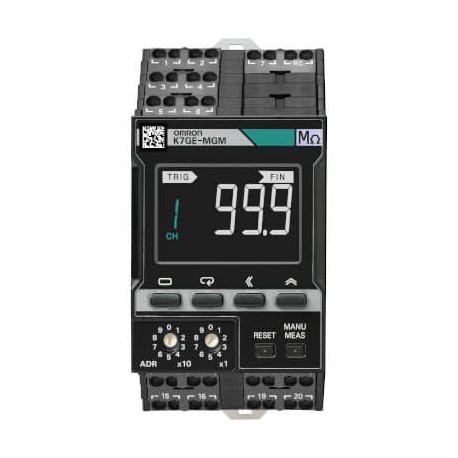

OMRON K7GE-MGMA K7GE-MGMA K7GE0001R K7GEMGMA OMRON Insulation Resistance Monitoring Device for 3-phase & servo motors, pumps.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K7GE-MGMA K7GE0001R K7GEMGMA OMRON Insulation Resistance Monitoring Device for 3-phase & servo motors, pumps..

K7GE-MGMA

K7GE0001R

K7GEMGMA

OMRON

1 Pcs.

Insulation Resistance Monitoring Device for 3-phase & servo motors, pumps and heaters, 100 to 240 VAC, transistor control output, Push-in Plus, LCD di

Automation > Accessories/spare parts for low-voltage switch technology

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Insulation Resistance Monitoring Device for 3-phase & servo motors, pumps.. continuously tracks the electrical integrity of motor windings and power cables to prevent unexpected insulation breakdown in industrial machinery. These diagnostic instruments help maintenance personnel detect early signs of electrical degradation before critical equipment failure occurs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Test device
  • Accessory (EF013236): Yes
  • Spare part (EF013237): No

More info

▲
Supply voltage AC100-240 VApplicable motor typeAC motor, DC motor, Servo motorApplicationDetection of poor insulation of electric heater, Detection of poor insulation when motor stopsMegger voltage50 VResistance range0-99.9 MohmNumber of digital outputs4Output typeNPN, TransistorProduct Width (unpacked)45 mmProduct Height (unpacked)90 mmProduct Depth (unpacked)91.9 mmCommunication port(s)CompoWay/F, MODBUS RTU, Serial RS-485Mounting methodDIN railMounting positionController: panel, Probe unit: panel (up to 8 per each controller)Setup methodFree softwareUser interfaceCondition monitoring software tool, Front LED, LCD screen
