View larger
Images are for illustrative purposes only. Please refer to data sheet for details

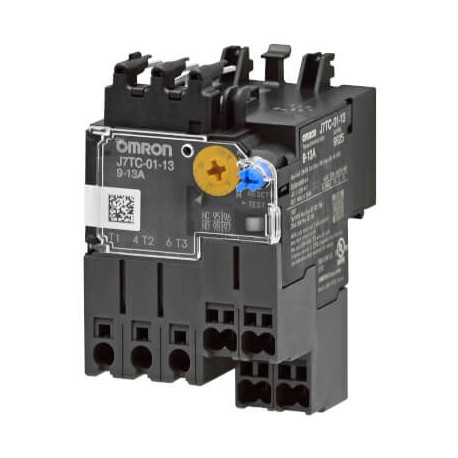

J7TC-01-7E5 J7TC5016C J7TC017E5 OMRON Thermal Overload Relay, Push-In Plus Terminals, Current setting range ..
J7TC-01-7E5
J7TC5016C
J7TC017E5
OMRON
1 Pcs.
Thermal Overload Relay, Push-In Plus Terminals, Current setting range thermal overload release 5 - 7.5 A, H×W×D 79.5 x 45 x 55.5 mm
Automation > Thermal overload relay
J7TK Thermal overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Auxiliary Contacts NO1Auxiliary Contacts NC1Setting range Star-delta [A]5-7.5 ASetting range D.O.L. (A)5-7.5 ATerminal typePush-in Plus
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Direct attachment |
| Type of electrical connection of main circuit (EF006819) | Other |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Adjustable current range (EF008211) | 5 A |
