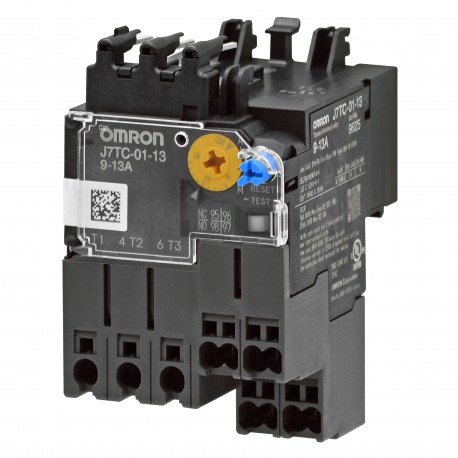

OMRON J7TC-01-1E6 J7TC-01-1E6 J7TC5010D J7TC011E6 OMRON Thermal Overload Relay, Push-In Plus Terminals, Current setting range .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7TC-01-1E6 J7TC5010D J7TC011E6 OMRON Thermal Overload Relay, Push-In Plus Terminals, Current setting range ..

J7TC-01-1E6

J7TC5010D

J7TC011E6

OMRON

1 Pcs.

Thermal Overload Relay, Push-In Plus Terminals, Current setting range thermal overload release 1.1 - 1.65 A, H×W×D 79.5 x 45 x 55.5 mm

Automation > Thermal overload relay
J7TK Thermal overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron thermal overload relay utilizing Push-In Plus Terminals, the J7TC-01-1E6 safeguards electrical motors against sustained overcurrent scenarios in automated control panels. These protective components interrupt the control circuit during excessive thermal loading to prevent premature motor failure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 1.1 A

More info

▲
Auxiliary Contacts NO1Auxiliary Contacts NC1Setting range Star-delta [A]1.1-1.65 ASetting range D.O.L. (A)1.1-1.65 ATerminal typePush-in PlusProduct Width (unpacked)45 mmProduct Height (unpacked)97.5 mmProduct Depth (unpacked)55.5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
