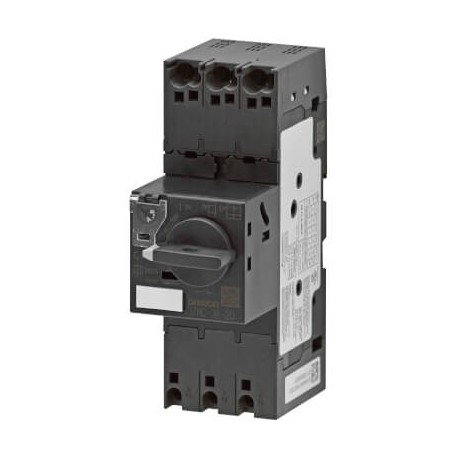

OMRON J7MC-3R-10 J7MC-3R-10 J7MC5023M J7MC3R10 OMRON Motor Protection Circuit Breaker, Push-In Plus Terminals, Current settin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MC-3R-10 J7MC5023M J7MC3R10 OMRON Motor Protection Circuit Breaker, Push-In Plus Terminals, Current settin..

J7MC-3R-10

J7MC5023M

J7MC3R10

OMRON

1 Pcs.

Motor Protection Circuit Breaker, Push-In Plus Terminals, Current setting range thermal overload release 6.3 - 10 A, H×W×D 130 x 45 x 90.8 mm

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A J7MC-3R-10 Omron motor protection circuit breaker is an essential safety device designed to protect electric motors from overloads, phase unbalances, and short circuits. Panel builders integrate these reliable components into industrial automation systems to ensure continuous, protected motor operation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 3.7 kW
  • Height (EF000040): 130 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 94.7 mm
  • Rated operation power at AC-3, 230 V (EF007025): 1.5 kW

More info

▲
Rated power AC2, AC3 at 400 V [kW]3.7 kWShort-circuit breaking capacity at 3 ~ 400 V [kA]50 kATerminal typePush-inProduct Width (unpacked)45 mmProduct Height (unpacked)130 mmProduct Depth (unpacked)94.7 mmControl typeRotary type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
