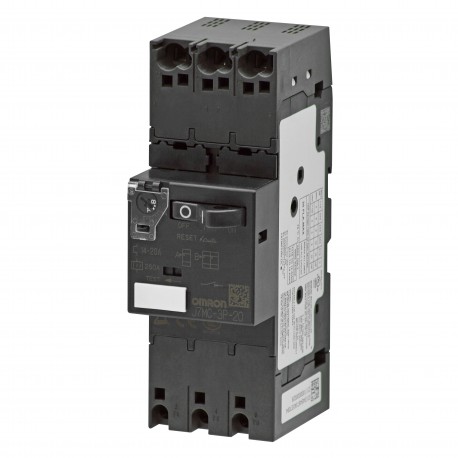

OMRON J7MC-3P-2E5 J7MC-3P-2E5 J7MC5007H J7MC3P2E5 OMRON Motor Protection Circuit Breaker, Push-In and Plus Terminals, Current .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MC-3P-2E5 J7MC5007H J7MC3P2E5 OMRON Motor Protection Circuit Breaker, Push-In and Plus Terminals, Current ..

J7MC-3P-2E5

J7MC5007H

J7MC3P2E5

OMRON

1 Pcs.

Motor Protection Circuit Breaker, Push-In and Plus Terminals, Current setting range thermal overload release 1.6 - 2.5 A, H×W×D 130 x 45 x 71 mm

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Push-In Plus wiring technology saves wiring and maintenance time
  • In combination with magnetic contactor model J7KC, it is ideal for control of motors to AC-3 class, 2.2 kW (200 to 240 VAC) * or 5.5 kW (380 to 440 VAC).
  • Rocker switch (standard type) and rotary switch (high-performance type)
  • High breaking capacity (Max100 kA/440 VAC)
  • Equipped with a dial cover as standard to protect accidental setting changes. Lockable with a padlock to ensure safety at startup.
  • Certified as compliant with the main safety standards

Specifications & ordering info

Ordering Information

Mainunit

Rocker switch (standard type)

Rated current (A)(Values in () are the currentsetting range)Order code
0.16 (0.1-0.16)J7MC-3P-E16
0.25 (0.16-0.25)J7MC-3P-E25
0.40 (0.25-0.4)J7MC-3P-E4
0.63 (0.4-0.63)J7MC-3P-E63
1 (0.63-1)J7MC-3P-1
1.6 (1-1.6)J7MC-3P-1E6
2.5 (1.6-2.5)J7MC-3P-2E5
4 (2.5-4)J7MC-3P-4
6.3 (4-6.3)J7MC-3P-6
10 (6.3-10)J7MC-3P-10
13 (9-13)J7MC-3P-13
16 (11-16)J7MC-3P-16
20 (14-20)J7MC-3P-20

Rotary switch (high-performancetype)

Rated current (A) (Values in () are the currentsetting range)Order code
0.16 (0.1-0.16)J7MC-3R-E16
0.25 (0.16-0.25)J7MC-3R-E25
0.40 (0.25-0.4)J7MC-3R-E4
0.63 (0.4-0.63)J7MC-3R-E63
1 (0.63-1)J7MC-3R-1
1.6 (1-1.6)J7MC-3R-1E6
2.5 (1.6-2.5)J7MC-3R-2E5
4 (2.5-4)J7MC-3R-4
6.3 (4-6.3)J7MC-3R-6
10 (6.3-10)J7MC-3R-10
13 (9-13)J7MC-3R-13
16 (11-16)J7MC-3R-16
20 (14-20)J7MC-3R-20

Options (OrderSeparately)

Auxiliary contact unit

Auxiliary contactOrder code
SPST-1NOJ73MC-W-10
SPST-1NCJ73MC-W-01

Alarm contact unit

Auxiliary contactOrder code
SPST-1NOJ73MC-K-10
SPST-1NCJ73MC-K-01

Insulation stop

Minimum order (bag)Order code
1
(10 pcs./bag)		For main unitJ77MC-A
For optional unit
(For auxiliary contact unit and alarm contact unit)		J77MC-B

Specifications

J7MC-3P-⬜(standardtype)

Rated current
2
Maximum thermal current setting value.

In [A]		Current setting
range
Rated operating
current [A]		Instantaneous
trip current
[A]		3-phase standard motor capacityand full load current
2
Full load currents are values for 200 VAC/ 50 Hz, 400 VAC / 50 Hz, 4P reference motors. Before applying them, check the full load current of the motor used.
Rated breakingcurrent Icu [kA]
200-240 VAC380-440 VAC
Capacity [kW]Current [A]Capacity [kW]Current [A]240 VAC415 VAC440 VAC
0.160.1 to 0.162.1––0.020.1100100100
0.250.16 to 0.253.30.030.240.060.21
0.40.25 to 0.45.20.060.370.10.34
0.630.4 to 0.638.2------0.120.41
10.63 to 1130.10.680.20.65
1.61 to 1.620.80.21.30.41.15
2.51.6 to 2.532.50.42.30.751.8
42.5 to 4520.753.51.53.5
6.34 to 6.381.9––2.24.850
106.3 to 101301.56.93.77.815
2.29.5
139 to 131692.29.55.510.55010
1611 to 162083.715.57.513.525
2014 to 202603.715.5112050

J7MC-3R-⬜ (high-performancetype)

Rated current
2
Maximum thermal current setting value.

In [A]		Current setting
range
Rated operating
current [A]		Instantaneous
trip current
[A]		3-phase standard motor capacityand full load current
2
Full load currents are values for 200 VAC/ 50 Hz, 400 VAC / 50 Hz, 4P reference motors. Before applying them, check the full load current of the motor used.
Rated breakingcurrent Icu [kA]
200-240 VAC380-440 VAC
Capacity [kW]Current [A]Capacity [kW]Current [A]240 VAC415 VAC440 VAC
0.160.1 to 0.162.1––0.020.1100100100
0.250.16 to 0.253.30.030.240.060.21
0.40.25 to 0.45.20.060.370.10.34
0.630.4 to 0.638.2------0.120.41
10.63 to 1130.10.680.20.65
1.61 to 1.620.80.21.30.41.15
2.51.6 to 2.532.50.42.30.751.8
42.5 to 4520.753.51.53.5
6.34 to 6.381.9––2.24.8
106.3 to 101301.56.93.77.850
2.29.5
139 to 131692.29.55.510.5
1611 to 162083.715.57.513.55035
2
JEM1195 breaking duty"O", single time breaking capacity is 50 kA.
2014 to 202603.715.51120

Characteristics

ModelJ7MC-3P-⬜ (standardtype)J7MC-3R-⬜ (high-performancetype)
Item
Switch typeRocker switchRotary switch
Number ofpoles3
Rated currentIn0.16 to 20 A
Rated operationalvoltage Ue200 to 690 V
Rated frequency50/60 Hz
Rated insulationvoltage690VAC
Rated impulsedielectric strength6 kV
Use categoryIEC 60947-2 (circuit breaker),
JIS C 8201-2		Cat.A
IEC 60947-4-1 (motor starter),
JIS C 8201-4-1		AC-3
Trip class(IEC 60947-4-1/JIS C 8201-4-1)10 Trips within 4 minutes at150% Ie on hot start, trips in 4 to 10 seconds at 720% Ie on coldstart
Instantaneoustrip characteristics13 x Ie max.
Power loss(3-phase reference value)Rated current 0.16 to 2.5 A: 6 W
Rated current 4 to 6.3 A: 6.5 W
Rated current 10 to 20 A: 7 W		Rated current 0.16 to 1.6 A: 6 W
Rated current 2.5 to 4 A: 6.5 W
Rated current 6.3 to 20 A: 7 W
EnduranceMechanical100,000 cycles In=0.16 to 20A
Electrical100,000 cycles In=0.16 to 20A
Number ofterminal insertions and removals [cycles]20
Maximum operatefrequency (motor starts) [cycles/hour]25
Phase failureprotectionYes
Trip indicatorYes
Test tripfunctionYes
Rated limit breaking capacity
Icu:
Rated limit breaking capacity [kA]
(Breaking duty O-CO)
Ics:
Rated operating breaking capacity [kA]
(Breaking duty O-CO-CO)

Ics=100%Icu (Icu=100 kA)		Rated operational
current Ie
Current setting [A]		IEC 60947-2/JIS C 8201-2ULIEC 60947-2/JIS C 8201-2UL
240 V
200 V		415 V
400 V		460 V
440 V		500 V690 V
600 V		480 V240 V
200 V		415 V
400 V		460 V
440 V		500 V690 V
600 V		480 V
IcuIcsIcuIcsIcuIcsIcuIcsIcuIcsIcuIcsIcuIcsIcuIcsIcuIcsIcuIcsIcuIcsIcuIcs
0.1-0.161001001001001005010010010010010050
0.16-0.251001001001001005010010010010010050
0.25-0.41001001001001005010010010010010050
0.4-0.631001001001001005010010010010010050
0.63-11001001001001005010010010010010050
1-1.61001001001001005010010010010010050
1.6-2.510010010010032501001001001008650
2.5-410010010010032501001001001008650
4-6.31001005038503832221001001001006550
6.3-1010010015111083222100100503850386550
9-131005038108653222100100503842326550
11-161002519108653222100503835
2
JEM1195 breakingduty "O", single time breaking capacity is 50 kA
271084350
14-2050382519108653222100503835
2
JEM1195 breakingduty "O", single time breaking capacity is 50 kA
271084350
VibrationresistanceVibration: 10 to 55 Hz, acceleration:15 m/s2
Shock resistanceShock value 50 m/s2
Degree ofprotectionIP20 (IEC60529)
Operatingtemperature–20°C to +60°C
Ambient storagetemperature–40°C to +80°C (no condensationor icing)
Relativehumidity95% RH max. (no condensationor icing)
Altitude2000m max.
WeightApprox. 430 g460 g
ApplicableStandardsSafety StandardEN 60947-2 (IEC 60947-2), UL60947-4-1, CSA 22.2 No.60947-4-1,
CCC GB/T 14048.2, Electrical Appliances and Material Safety Act (Non-Specified Electrical Appliances and Materials)

ETIM for 690119 Low-voltage industrial controls and switchgear (EC000074)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 2.5 A
Overload release current setting (EF002336) 1.6 A
Adjustment range undelayed short-circuit release (EF007131) 32.5 A
