> OMRON > Low Voltage Switchgear > J7MN Motor Protector > J7MC5006M

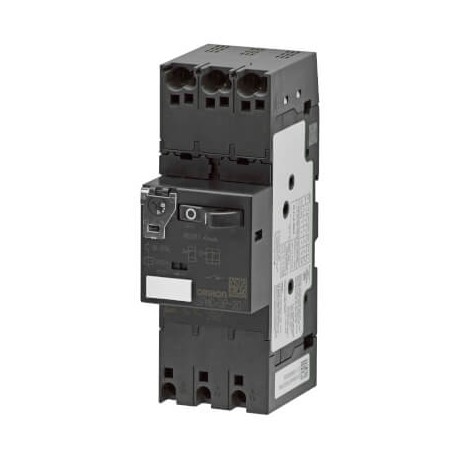

OMRON J7MC-3P-1E6 J7MC-3P-1E6 J7MC5006M J7MC3P1E6 OMRON Motor Protection Circuit Breaker, Push-In Plus Terminals, Current sett.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MC-3P-1E6 J7MC5006M J7MC3P1E6 OMRON Motor Protection Circuit Breaker, Push-In Plus Terminals, Current sett..

J7MC-3P-1E6

J7MC5006M

J7MC3P1E6

OMRON

1 Pcs.

Motor Protection Circuit Breaker, Push-In Plus Terminals, Current setting range thermal overload release 1 - 1.6 A, H×W×D 130 x 45 x 71 mm

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron J7MC-3P-1E6 is a motor protection circuit breaker featuring Push-In Plus terminals for efficient wiring in industrial control panels. It secures electric motors against operational hazards like overcurrents and short circuits to maximize machine longevity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rocker lever
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 0.4 kW
  • Height (EF000040): 130 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 74.7 mm
  • Rated operation power at AC-3, 230 V (EF007025): 0.2 kW

More info

▲
Rated power AC2, AC3 at 400 V [kW]0.4 kWShort-circuit breaking capacity at 3 ~ 400 V [kA]100 kATerminal typePush-inProduct Width (unpacked)45 mmProduct Height (unpacked)130 mmProduct Depth (unpacked)74.7 mmControl typeSwitch type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
