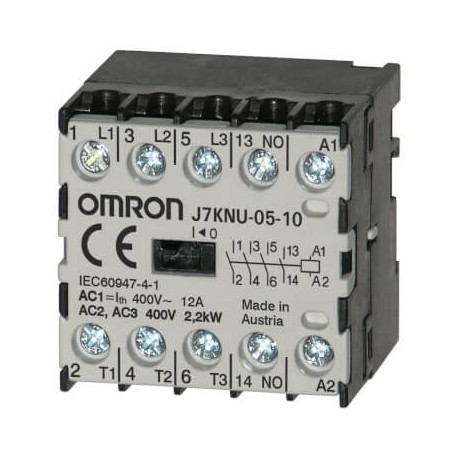

OMRON J7KNU-05-10 60D J7KNU-05-10 60D J7KN9836F J7KNU051060D OMRON Micro-contactor, 3-pole (NA) + 1NO, 2.2 kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNU-05-10 60D J7KN9836F J7KNU051060D OMRON Micro-contactor, 3-pole (NA) + 1NO, 2.2 kW

J7KNU-05-10 60D

J7KN9836F

J7KNU051060D

OMRON

10 Pcs.

Micro-contactor, 3-pole (NA) + 1NO, 2.2 kW Micro contactor, 3-pole (NO) + 1NO, 2.2 kW; 12A AC1 (up to 440 VAC), 60 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

J7KNU-05-10 60D J7KN9836F J7KNU051060D OMRON Micro-contactor, 3-pole (NA) + 1NO, 2.2 kW provides compact electromechanical switching capabilities for low-power motor circuits and auxiliary automation systems where space in control cabinets is strictly limited. It safely handles regular operating cycles in tight installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): Yes
  • Rated operation current Ie at AC-1, 400 V (EF001393): 12 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 5 A
  • Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 3.5 A
  • Rated operation power at AC-4, 400 V (EF008496): 1.5 kW
  • Rated control supply voltage DC (EF003980): 60 V

More info

▲
Auxiliary Contacts NO1Auxiliary Contacts NC-Coil voltage60 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]2.2 kWRated current AC3 at 400 V [A]5 ARated current AC1 at 440 V [A]12 ATerminal typeScrewPoles3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
