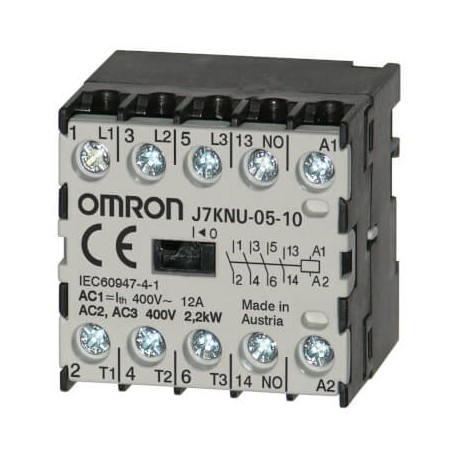

J7KNU-05-10 48D J7KN9835H 675296 OMRON Micro contactor, 3-pole (NA) + 1NA, 2.2 kW 12A AC1 (up to 440VAC), 48..
J7KNU-05-10 48D
J7KN9835H
J7KNU051048D
OMRON
1 Pcs.
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron micro contactor J7KNU-05-10 48D is a compact electromechanical switching device built for applications where panel space is severely limited without sacrificing performance. This miniature unit efficiently controls small motors and auxiliary control lines in automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Main Contacts NO: 3
- Auxiliary Contacts NO: 1
- Coil voltage: 48 V
- Operation voltage: DC
- Rated power AC2, AC3 at 400 V [kW]: 2.2 kW
- Rated current AC3 at 400 V [A]: 5 A
- Rated current AC1 at 440 V [A]: 12 A
- Terminal type: Screw
- Voltage type for actuating (EF008242): DC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Modular version (EF001126): Yes
- Rated operation current Ie at AC-1, 400 V (EF001393): 12 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation current Ie at AC-3, 400 V (EF001392): 5 A
- Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 3.5 A
More info
▲Specifications
| Main Contacts NO | 3 |
| Auxiliary Contacts NO | 1 |
| Auxiliary Contacts NC | - |
| Coil voltage | 48 V |
| Operation voltage | DC |
| Rated power AC2, AC3 at 400 V [kW] | 2.2 kW |
| Rated current AC3 at 400 V [A] | 5 A |
| Rated current AC1 at 440 V [A] | 12 A |
| Terminal type | Screw |
