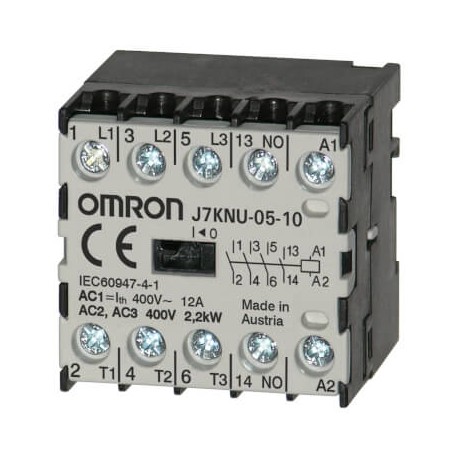

J7KNU-05-10 48 J7KN9796C J7KNU051048 OMRON Micro-contactor, 3-pole (NA) + 1NO, 2.2 kW
J7KNU-05-10 48
J7KN9796C
J7KNU051048
OMRON
10 Pcs.
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for compact control panels, this Omron J7KNU-05-10 48 micro-contactor provides efficient switching capabilities for low-horsepower motors and auxiliary automation loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Modular version (EF001126): Yes
- Rated operation current Ie at AC-1, 400 V (EF001393): 12 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation current Ie at AC-3, 400 V (EF001392): 5 A
- Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 3.5 A
- Rated operation power at AC-4, 400 V (EF008496): 1.5 kW
- Rated control supply voltage AC 60 Hz (EF003979): 48 V
- Rated control supply voltage AC 50 Hz (EF003978): 48 V
