View larger
Images are for illustrative purposes only. Please refer to data sheet for details

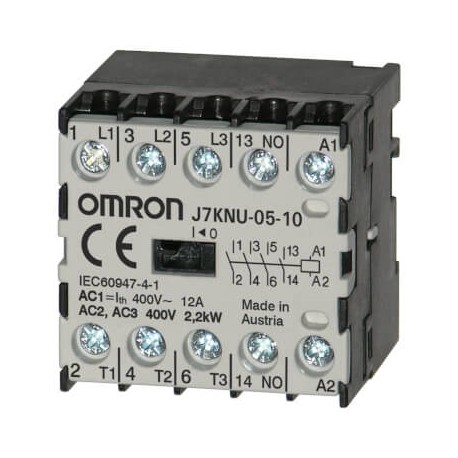

J7KNU-05-10 24D J7KN9834M J7KNU051024D OMRON Micro-contactor, 3-pole (NA) + 1NO, 2.2 kW
J7KNU-05-10 24D
J7KN9834M
J7KNU051024D
OMRON
1 Pcs.
Micro-contactor, 3-pole (NA) + 1NO, 2.2 kW
Micro contactor, 3-pole (NO) + 1NO, 2.2 kW; 12A AC1 (up to 440 VAC), 24 VDC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Main Contacts NO3Auxiliary Contacts NO1Auxiliary Contacts NC-Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]2.2 kWRated current AC3 at 400 V [A]5 ARated current AC1 at 440 V [A]12 ATerminal typeScrew
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | Yes |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 12 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 5 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Rated operation power at AC-3, 400 V (EF001364) | 2.2 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 3.5 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-4, 400 V (EF008496) | 1.5 kW |
| Rated control supply voltage DC (EF003980) | 24 V |
