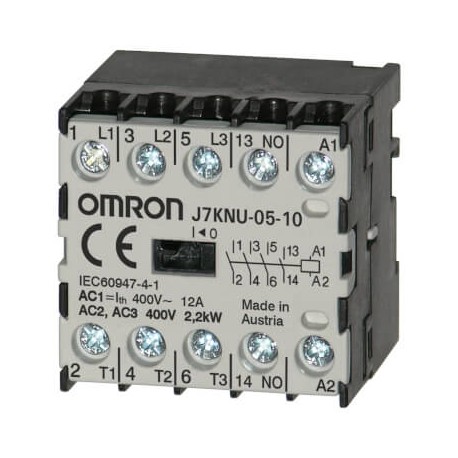

J7KNU-05-10 180 J7KN9793R J7KNU0510180 OMRON Micro-contactor, 3-pole (NA) + 1NO, 2.2 kW
J7KNU-05-10 180
J7KN9793R
J7KNU0510180
OMRON
1 Pcs.
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron J7KNU-05-10 180 micro-contactor provides compact, reliable switching performance for space-constrained industrial control applications and small motor circuits. Engineers utilize micro-contactors to achieve precise control integration within dense electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Modular version (EF001126): Yes
- Rated operation current Ie at AC-1, 400 V (EF001393): 12 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation current Ie at AC-3, 400 V (EF001392): 5 A
- Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 3.5 A
- Rated operation power at AC-4, 400 V (EF008496): 1.5 kW
- Rated control supply voltage AC 60 Hz (EF003979): 200 V
- Rated control supply voltage AC 50 Hz (EF003978): 185 V
