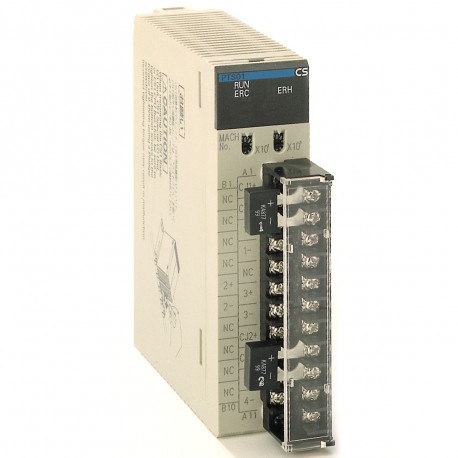

OMRON CS1W-PTS52 CS1W-PTS52 CS1W0290H CS1WPTS52 OMRON Module, 4 Inputs, Pt100/JPt100 galvanic Isolation View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CS1W-PTS52 CS1W0290H CS1WPTS52 OMRON Module, 4 Inputs, Pt100/JPt100 galvanic Isolation

CS1W-PTS52

CS1W0290H

CS1WPTS52

OMRON

1 Pcs.

Module, 4 Inputs, Pt100/JPt100 galvanic Isolation

Automation > PLC analogue I/O-module
CS1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications & ordering info

Ordering information

Points

Type

Ranges

Resolution

Accuracy1

Conversion
time

Remarks

Connection type

Order code

4

Analog input

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V,
4 to 20 mA

1/8,000

V: 0.2% of PV
I: 0.4% of PV

250 µs/point

Offset/gain adjustment, peak hold,
moving average, alarms

M3

CS1W-AD041-V1

8

Analog input

M3

CS1W-AD081-V1

16

Analog input

0.2% of PV

2 × MIL (34p.)

CS1W-AD161

4

Analog output

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V,
4 to 20 mA

1/4,000

V: 0.3% of PV
I: 0.5% of PV

1 ms/point

Offset/gain adjustment

M3

CS1W-DA041

8

Voltage output

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V

0.3% of PV

Offset/gain adjustment, output hold

M3

CS1W-DA08V

8

Current output

4 to 20 mA

0.5% of PV

M3

CS1W-DA08C

4 + 4

Analog in + output

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V
(4 to 20 mA input)

1/8,000

V in: 0.2% of PV
I in: 0.4% of PV
out: 0.3% of PV

1 ms/point

Offset/gain adjustment, scaling, peak hold, moving average, alarms, output hold

M3

CS1W-MAD44

4

Process input

4 to 20 mA,
0 to 20 mA,
0 to 10 V,
-10 to 10 V,
0 to 5 V,
-5 to 5 V,
1 to 5 V,
1 to 1.25 V,
-1.25 to 1.25 V

1/64,000

0.05% of PV

5 ms/point

Configurable alarms, maintenance
functions, user-defined scaling, zero/span adjustment, square root, totaliser.

M3

CS1W-PDC11

8

Process input

-10 to 10 V,
0 to 5 V,
1 to 5 V,
4 to 20 mA

1/16,000

0.3% of PV

62.5 ms/point

Configurable alarms, zero/span adjustment, square root

M3

CS1W-PDC55

4

Thermocouple input

B, E, J, K, L, N, R, S, T,
U, WRe5-26, PLII,
-100 to 100 mV

1/64,000

0.05% of PV

5 ms/point

Configurable alarms (absolute +
rate-of-change), peak hold,
maintenance functions

M3

CS1W-PTS11

4

Resistance thermometer input

Pt50, Pt100 JPt100, Ni508.4

1/64,000

0.05% of PV

5 ms/point

Configurable alarms (absolute +
rate-of-change), peak hold,
maintenance functions

M3

CS1W-PTS12

4

Thermocouple input

B, J, K, L, R, S, T

0.1°C

0.3% of PV

62.5 ms/point

4 configurable alarm outputs

M3

CS1W-PTS51

4

Resistance thermometer input

Pt100, JPt100

0.1°C

0.3% of PV

62.5 ms/point

4 configurable alarm outputs

M3

CS1W-PTS52

8

Thermocouple input

B, J, K, L, R,S, T

0.1°C

0.3% of PV

31.2 ms/point

Configurable alarms per channel

M3

CS1W-PTS55

8

Resistance thermometer input

Pt100, JPt100

0.1°C

0.3% of PV

31.2 ms/point

Configurable alarms per channel

M3

CS1W-PTS56

4

2-Wire transmitter input

1 to 5 V,
4 to 20 mA

1/4,096

0.2% of FS

25 ms/point

Built-in power supply for transmitter, configurable alarms, square root,
rate-of-change, etc.

M3

CS1W-PTW01

8

Power transducer input

-1 to 1 mA,
0 to 1 mA

1/4,096

0.2% of FS

25 ms/point

Inrush current limiter, configurable alarms, averaging, etc.

M3

CS1W-PTR01

8

Power transducer input

-100 to 100 mV,
0 to 100 mV

1/4,096

0.2% of FS

25 ms/point

Inrush current limiter, configurable alarms, averaging, etc.

M3

CS1W-PTR02

4

Pulse rate input

20000 pps, voltage,
open collector, contact

up to
1/32,000

-

25 ms/point

Averaging, totaliser

M3

CS1W-PPS01

4

Isolated control output

1 to 5 V,
4 to 20 mA

1/4,000

I: 0.1% of FS
V: 0.2% of FS

25 ms/point

Output readback, high/low/rate limiting, disconnection alarm, zero/span
adjustment

M3

CS1W-PMV01

4

Isolated control output

-10 to 10 V,
0 to 10 V,
-5 to 5 V,
0 to 5 V,
-1 to 1 V,
0 to 1 V

1/4,000

0.1% of FS

10 ms/point

High/low/rate limiting, output hold,
zero/span adjustment

M3

CS1W-PMV02

Note: All analog I/O units are designated as special I/O units

1.Accuracy for Voltage and Current Inputs/Outputs as percentage of full scale and typical value at 25°C ambient temperature (Consult the operation manual for details)
Accuracy for Temperature Inputs/Outputs as percentage of process value and typical value at 25°C ambient temperature (Consult the operation manual for details)
