Product Overview

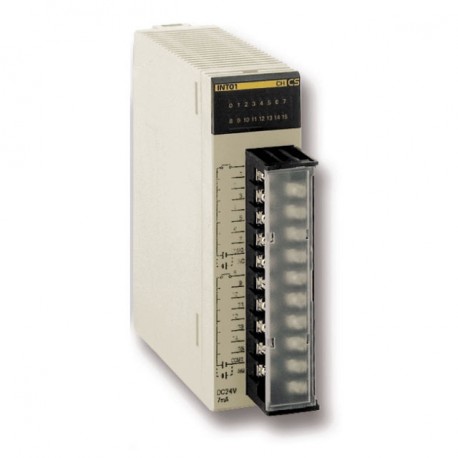

An interrupt input module such as the Omron CS1W-INT01 processes high-priority external signals that require immediate attention from a PLC central processing unit. These specialized components bypass normal scan cycles to capture critical event timing in complex industrial automation setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 16: AC or DC input
- 16: AC input
- 16: DC input
- 16: DC input
- 16: DC input
- 32: DC input
- 64: DC input
- 96: DC input
- 8: Triac output
- 16: Triac output
- 8: Relay output
- 16: Relay output
- 16: DC output (sink)
- 16: DC output (source)
- 32: DC output (sink)
- 32: DC output (source)
Specifications & ordering info
Ordering information
Points | Type | Rated voltage | Rated current | Remarks | Connection type | Order code1 |
|---|
16 | AC or DC input | 120 VAC or VDC | 10 mA | - | M3 | CS1W-IA111 |
16 | AC input | 240 VAC | 10 mA | - | M3 | CS1W-IA211 |
16 | DC input | 24 VDC | 7 mA | - | M3 | CS1W-ID211 |
16 | DC input | 24 VDC | 7 mA | Inputs start interrupt tasks in PLC program | M3 | CS1W-INT01 |
16 | DC input | 24 VDC | 7 mA | Latches pulses down to 50 µs pulse width | M3 | CS1W-IDP01 |
32 | DC input | 24 VDC | 6 mA | - | 1 × 40 pt Fujitsu | CS1W-ID231 |
64 | DC input | 24 VDC | 6 mA | - | 2 × 40 pt Fujitsu | CS1W-ID261 |
96 | DC input | 24 VDC | 5 mA | - | 2 × 56 pt Fujitsu | CS1W-ID291 |
8 | Triac output | 250 VAC | 1.2 A | - | M3 | CS1W-OA201 |
16 | Triac output | 250 VAC | 0.5 A | - | M3 | CS1W-OA211 |
8 | Relay output | 250 VAC | 2.0 A | - | M3 | CS1W-OC201 |
16 | Relay output | 250 VAC | 2.0 A | - | M3 | CS1W-OC211 |
16 | DC output (sink) | 12 to 24 VDC | 0.5 A | - | M3 | CS1W-OD211 |
16 | DC output (source) | 24 VDC | 0.5 A | With short-circuit protection, alarm | M3 | CS1W-OD212 |
32 | DC output (sink) | 12 to 24 VDC | 0.5 A | - | 1 × 40 pt Fujitsu | CS1W-OD231 |
32 | DC output (source) | 24 VDC | 0.5 A | With short-circuit protection, alarm | 1 × 40 pt Fujitsu | CS1W-OD232 |
64 | DC output (sink) | 12 to 24 VDC | 0.3 A | - | 2 × 40 pt Fujitsu | CS1W-OD261 |
64 | DC output (source) | 24 VDC | 0.3 A | With short-circuit protection, alarm | 2 × 40 pt Fujitsu | CS1W-OD262 |
96 | DC output (sink) | 12 to 24 VDC | 0.1 A | - | 2 × 56 pt Fujitsu | CS1W-OD291 |
96 | DC output (source) | 24 VDC | 0.1 A | - | 2 × 56 pt Fujitsu | CS1W-OD292 |
32+32 | DC output (sink) | 12 to 24 VDC | 0.3 A | - | 2 × 40 pt Fujitsu | CS1W-MD261 |
32+32 | DC in+out (source) | 24 VDC | 0.3 A | With short-circuit protection, alarm | 2 × 40 pt Fujitsu | CS1W-MD262 |
48+48 | DC output (sink) | 12 to 24 VDC | 0.1 A | - | 2 × 56 pt Fujitsu | CS1W-MD291 |
48+48 | DC in+out (source) | 12 to 24 VDC | 0.1 A | - | 2 × 56 pt Fujitsu | CS1W-MD292 |
Note: All Digital I/O units are designated as Basic I/O units.
Accessories
Description | Connection type | Order code |
|---|
Connection cable between I/O terminal block and I/O unit with 40-pt Fujitsu connector ( _ _ _ = length in cm) | Fujitsu (40pt) | XW2Z-___B |
I/O terminal block for input unit with 40-pt Fujitsu connector | Push-in | XW2R-P34G-C1 |
I/O terminal block for output unit with 40-pt Fujitsu connector | Push-in | XW2R-P34G-C3 |
I/O terminal block for input unit with 40-pt Fujitsu connector | Clamp | XW2R-E34G-C1 |
I/O terminal block for output unit with 40-pt Fujitsu connector | Clamp | XW2R-E34G-C3 |
I/O terminal block for input unit with 40-pt Fujitsu connector | M3 Screws | XW2R-J34G-C1 |
I/O terminal block for output unit with 40-pt Fujitsu connector | M3 Screws | XW2R-J34G-C3 |
Note: For I/O Cables and Terminal Blocks, see page
1.C200H I/O units can also be mounted, except on CS1D systems.
Accessories
I/O cables and terminal blocks
Ordering information
I/O cables
Shape | PLC connection | Terminal connection | Length in cm | Wiring | Order code |
|---|
30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
|---|
| FCN24 | MIL20 | - | ⬛ | - | ⬛ | - | ⬛ | - | ⬛ | - | - | Straight | XW2Z-[....]AD-L |
| Open ends | - | - | - | ⬛ | - | ⬛ | - | ⬛ | - | - | n. a. | XW2Z-[....]AL-L |
| FCN40 | MIL20 × 2 | - | - | - | ⬛ | ⬛ | ⬛ | - | ⬛ | ⬛ | ⬛ | Straight | XW2Z-[....]BH-L01 |
Reverse | XW2Z-[....]BH-L02 |
| MIL40 | - | ⬛ | - | ⬛ | ⬛ | ⬛ | - | ⬛ | - | ⬛ | Straight | XW2Z-[....]BF-L |
| Open ends | - | - | - | ⬛ | - | ⬛ | - | ⬛ | - | ⬛ | n. a. | XW2Z-[....]BN-L |
| FCN56 | MIL20 × 3 | - | - | - | - | ⬛ | ⬛ | - | ⬛ | - | - | Straight | XW2Z-[....]CJ-L01 |
Reverse | XW2Z-[....]CJ-L02 |
| MIL20 + MIL40 | - | - | - | - | ⬛ | ⬛ | - | - | - | - | Straight | XW2Z-[....]CK-L01 |
Reverse | XW2Z-[....]CK-L02 |
| MIL60 | - | - | - | ⬛ | - | ⬛ | - | ⬛ | - | - | Straight | XW2Z-[....]CG-L |
| MIL20 | MIL20 | - | ⬛ | - | ⬛ | - | ⬛ | - |
| - | - | Straight | XW2Z-[....]DD-L |
| Open ends | - | ⬛ | - | ⬛ | ⬛ | ⬛ | - | ⬛ | - | ⬛ | n. a. | XW2Z-[....]DL-L |
| Fork terminals | - | ⬛ | - | ⬛ | ⬛ | ⬛ | - | ⬛ | - | ⬛ | n. a. | XW2Z-[....]DM-L |
| MIL34 | MIL34 | - | - | - | - | - | ⬛ | - | - | - | - | Straight | XW2Z-[....]EE-L |
| MIL40 | MIL20 × 2 | - | - | ⬛ | ⬛ | - | ⬛ | - | ⬛ | - | ⬛ | Reverse | XW2Z-[....]FH-L01 |
Straight | XW2Z-[....]FH-L02 |
| MIL40 | ⬛ | ⬛ | - | ⬛ | ⬛ | ⬛ | - | ⬛ | - | ⬛ | Straight | XW2Z-[....]FF-L |
| Open ends | - | - | - | ⬛ | ⬛ | ⬛ | ⬛ | ⬛ | - | ⬛ | n. a. | XW2Z-[....]FN-L |
Note: For [....] fill in the 4-digit length in cm
I/O cables XW2Z
XW2Z-_AD-L
PLC connection | Terminal connection | Wiring | Length in cm (L) | Order code |
|---|
30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
|---|
24-pin FCN Connector | 20-pin MIL Connector | Straight | - | ⬛ | - | - | - | - | - | - | - | - | XW2Z-0050AD-L |
- | - | - | ⬛ | - | - | - | - | - | - | XW2Z-0100AD-L |
- | - | - | - | - | ⬛ | - | - | - | - | XW2Z-0200AD-L |
- | - | - | - | - | - | - | ⬛ | - | - | XW2Z-0300AD-L |
XW2Z-_AL-L
PLC connection | Terminal connection | Wiring | Length in cm (L) | Order code |
|---|
30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
|---|
24-pin FCN | Loose Wires | Straight | - | - | - | ⬛ | - | - | - | - | - | - | XW2Z-0100AL-L |
- | - | - | - | - | ⬛ | - | - | - | - | XW2Z-0200AL-L |
- | - | - | - | - | - | - | ⬛ | - | - | XW2Z-0300AL-L |
XW2Z-_BH-L01
PLC connection | Terminal connection | Wiring | Length in cm (L1) | Length in cm (L2) | Order code |
|---|
100 | 150 | 200 | 300 | 400 | 500 | 75 | 125 | 175 | 275 | 375 | 475 |
|---|
40-pin FCN | Two 20-pin MIL | Straight | ⬛ | - | - | - | - | - | ⬛ | - | - | - | - | - | XW2Z-0100BH-L01 |
- | ⬛ | - | - | - | - | - | ⬛ | - | - | - | - | XW2Z-0150BH-L01 |
- | - | ⬛ | - | - | - | - | - | ⬛ | - | - | - | XW2Z-0200BH-L01 |
- | - | - | ⬛ | - | - | - | - | - | ⬛ | - | - | XW2Z-0300BH-L01 |
- | - | - | - | ⬛ | - | - | - | - | - | ⬛ | - | XW2Z-0400BH-L01 |
- | - | - | - | - | ⬛ | - | - | - | - | - | ⬛ | XW2Z-0500BH-L01 |
XW2Z-_BH-L02
PLC connection | Terminal connection | Wiring | Length in cm (L1) | Length in cm (L2) | Order code |
|---|
100 | 150 | 200 | 300 | 400 | 500 | 75 | 125 | 175 | 275 | 375 | 475 |
|---|
40-pin FCN | Two 20-pin MIL | Reverse | ⬛ | - | - | - | - | - | ⬛ | - | - | - | - | - | XW2Z-0100BH-L02 |
- | ⬛ | - | - | - | - | - | ⬛ | - | - | - | - | XW2Z-0150BH-L02 |
- | - | ⬛ | - | - | - | - | - | ⬛ | - | - | - | XW2Z-0200BH-L02 |
- | - | - | ⬛ | - | - | - | - | - | ⬛ | - | - | XW2Z-0300BH-L02 |
- | - | - | - | ⬛ | - | - | - | - | - | ⬛ | - | XW2Z-0400BH-L02 |
- | - | - | - | - | ⬛ | - | - | - | - | - | ⬛ | XW2Z-0500BH-L02 |
XW2Z-_BF-L
PLC connection | Terminal connection | Wiring | Length in cm (L) | Order code |
|---|
30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
|---|
40-pin FCN | 40-pin MIL | Straight | - | ⬛ | - | - | - | - | - | - | - | - | XW2Z-0050BF-L |
- | - | - | ⬛ | - | - | - | - | - | - | XW2Z-0100BF-L |
- | - | - | - | ⬛ | - | - | - | - | - | XW2Z-0150BF-L |
- | - | - | - | - | ⬛ | - | - | - | - | XW2Z-0200BF-L |
- | - | - | - | - | - | - | ⬛ | - | - | XW2Z-0300BF-L |
- | - | - | - | - | - | - | - | - | ⬛ | XW2Z-0500BF-L |
XW2Z-_BN-L
PLC connection | Terminal connection | Wiring | Length in cm (L) | Order code |
|---|
