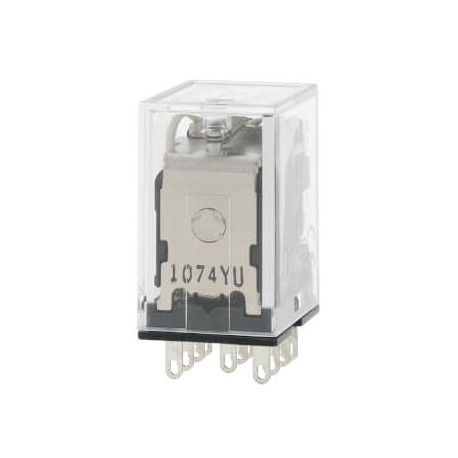

OMRON MY3 24VAC MY3 24VAC MY3 1002H MY324AC OMRON 3PDT 5A enchuf/welding View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MY3 24VAC MY3 1002H MY324AC OMRON 3PDT 5A enchuf/welding

MY3 24VAC

MY3 1002H

MY324AC

OMRON

10 Pcs.

3PDT 5A enchuf/welding Relay, plug-in, 11-pin, 3PDT, 5 A, mech indicators, label facility, 24 VAC

Automation > Switching relay
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The MY3 24VAC MY3 1002H MY324AC OMRON 3PDT 5A enchuf/welding plug-in relay is a versatile switching component designed to manage multiple electrical circuits simultaneously within automated manufacturing systems and industrial control hubs. These relays offer straightforward installation and replacement in standard panel sockets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarity free
  • Voltage type for actuating (EF008242): AC
  • Type of electric connection (EF003961): Plug-in connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 3
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 21.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 28 mm
  • Depth (EF000049): 36 mm
  • Nominal current (EF000001): 3 A

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles3Rated carry current5 ACoil voltage24 VOperation voltageACContact materialAgContact description3PDTFeaturesTransparent case, With mechanical indicatorTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
