View larger
Images are for illustrative purposes only. Please refer to data sheet for details

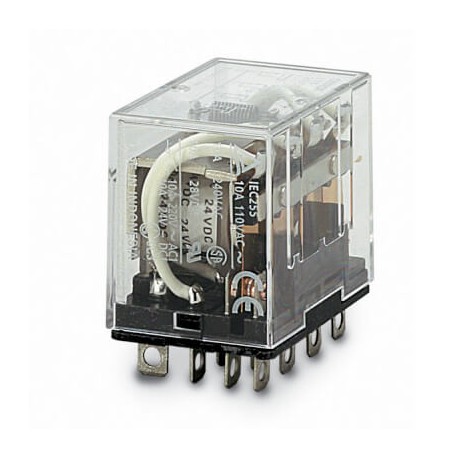

LY4N 200/220VAC LY4 5072G LY4N200220AC OMRON 4PDT 10A Enchuf/solder LED indicator
LY4N 200/220VAC
LY4 5072G
LY4N200220AC
OMRON
20 Pcs.
4PDT 10A Enchuf/solder LED indicator
Relay, plug-in, 14-pin, 4PDT, 10 A, LED indicator, 200/220 VAC
Automation > Switching relay
LY
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Mounting method | With plug-in socket |
| Usage | General purpose, High power |
| Poles | 4 |
| Rated carry current | 10 A |
| Coil voltage | 220 V |
| Operation voltage | AC |
| Contact material | Ag alloy |
| Contact description | 4PDT |
| Features | LED, Transparent case |
| Terminal type | Plug-in |
| Feature Name | Feature Value |
|---|---|
| Type of switch contact (EF003358) | Single contact |
| Degree of protection (IP) (EF005474) | Other |
| Drive, polarization (EF003355) | Polarized |
| Voltage type for actuating (EF008242) | AC |
| Type of electric connection (EF003961) | Plug-in connection |
| Drive, switching attitude (EF003356) | Mono stable |
| With detachable clamps (EF003340) | No |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | Yes |
| With forced-guided contacts (EF003357) | No |
| Number of contacts as change-over contact (EF008257) | 4 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Width (EF000008) | 41.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 28.0 mm |
| Depth (EF000049) | 36.0 mm |
| Nominal current (EF000001) | 10 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 160 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 160 V |
