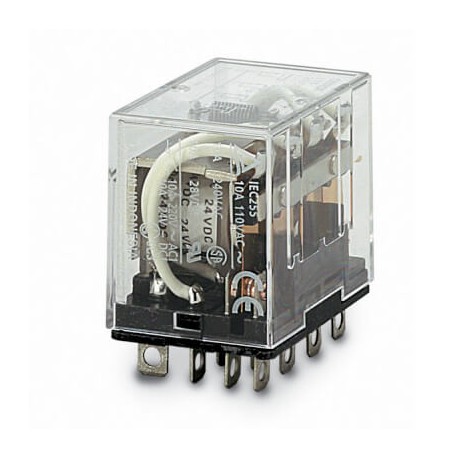

OMRON LY4 48VDC LY4 48VDC LY4 5016F LY448DC OMRON 4PDT 10A Enchuf/welding View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LY4 48VDC LY4 5016F LY448DC OMRON 4PDT 10A Enchuf/welding

LY4 48VDC

LY4 5016F

LY448DC

OMRON

20 Pcs.

4PDT 10A Enchuf/welding Relay, plug-in, 14-pin, 4PDT, 10 A, 48 VDC

Automation > Switching relay
LY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron LY4 48VDC is an electromechanical 4PDT plug-in relay designed to handle switching duties in complex electrical control panels. Control engineers utilize components of this type to isolate low-power logic circuits from higher-voltage load circuits, enabling reliable automation sequencing across industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarity free
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Plug-in connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 4
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 41.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 28.0 mm
  • Depth (EF000049): 36.0 mm
  • Nominal current (EF000001): 10 A

More info

▲
Mounting methodWith plug-in socketUsageGeneral purposePoles4Rated carry current10 ACoil voltage48 VOperation voltageDCContact materialAgSnInContact description4PDTFeaturesTransparent caseTerminal typePlug-in, Solder

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
