View larger
Images are for illustrative purposes only. Please refer to data sheet for details

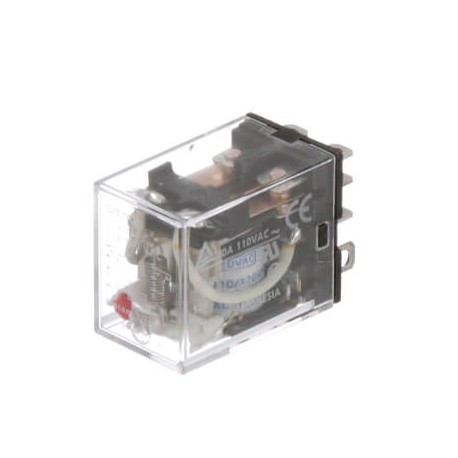

LY2N 100/110VAC LY2 5155F LY2N100110AC OMRON DPDT 10A enchuf welding/indicator and test
LY2N 100/110VAC
LY2 5155F
LY2N100110AC
OMRON
50 Pcs.
DPDT 10A enchuf welding/indicator and test
Relay, plug-in, 8-pin, DPDT, 10 A, LED indicator, 100/110 VAC
Automation > Switching relay
LY
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Mounting method | With plug-in socket |
| Usage | General purpose, High power |
| Poles | 2 |
| Rated carry current | 10 A |
| Coil voltage | 110 V |
| Operation voltage | AC |
| Contact material | Ag alloy |
| Contact description | DPDT |
| Features | LED, Transparent case |
| Terminal type | Plug-in |
| Feature Name | Feature Value |
|---|---|
| Type of switch contact (EF003358) | Single contact |
| Degree of protection (IP) (EF005474) | Other |
| Drive, polarization (EF003355) | Polarity free |
| Voltage type for actuating (EF008242) | AC |
| Type of electric connection (EF003961) | Plug-in connection |
| Drive, switching attitude (EF003356) | Mono stable |
| With detachable clamps (EF003340) | No |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | Yes |
| With forced-guided contacts (EF003357) | No |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Width (EF000008) | 21.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 28.0 mm |
| Depth (EF000049) | 36.0 mm |
| Nominal current (EF000001) | 10 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 80 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 80 V |
