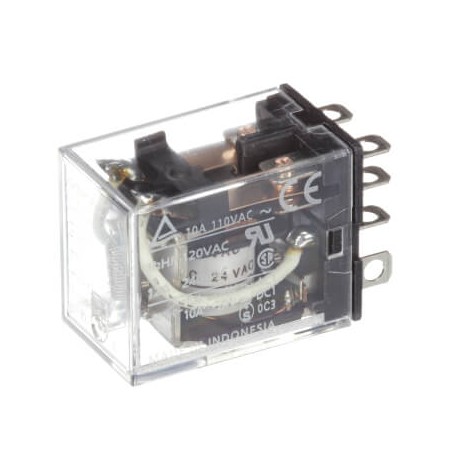

OMRON LY2 24VAC LY2 24VAC LY2 5003G LY224AC 2 OMRON DPDT 10A Enchuf./welding View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LY2 24VAC LY2 5003G LY224AC 2 OMRON DPDT 10A Enchuf./welding

LY2 24VAC

LY2 5003G

LY224AC 2

OMRON

50 Pcs.

DPDT 10A Enchuf./welding Relay, plug-in, 8-pin, DPDT, 10 A, 24 VAC

Automation > Switching relay
LY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron LY2 24VAC electromechanical relays serve as reliable switching devices within manufacturing plants, control panels, and automation infrastructure. These units enable control systems to handle multiple electrical circuits simultaneously with secure physical contacts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarity free
  • Voltage type for actuating (EF008242): AC
  • Type of electric connection (EF003961): Plug-in connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 21.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 28.0 mm
  • Depth (EF000049): 36.0 mm
  • Nominal current (EF000001): 10 A

More info

▲
Mounting methodWith plug-in socketUsageGeneral purpose, High powerPoles2Rated carry current10 ACoil voltage24 VOperation voltageACContact materialAg alloyContact descriptionDPDTFeaturesTransparent caseTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
