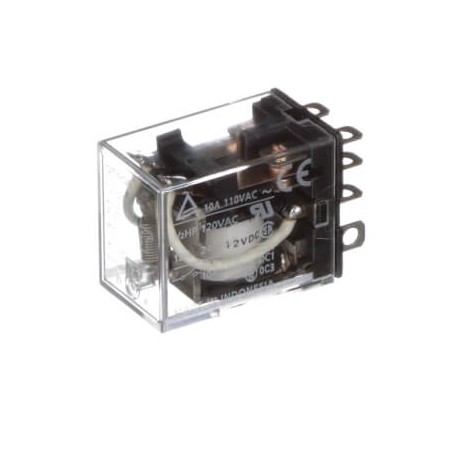

OMRON LY2 12VDC LY2 12VDC LY2 5014B LY212DC OMRON DPDT 10A enchuf/welding View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LY2 12VDC LY2 5014B LY212DC OMRON DPDT 10A enchuf/welding

LY2 12VDC

LY2 5014B

LY212DC

OMRON

50 Pcs.

DPDT 10A enchuf/welding Relay, plug-in, 8-pin, DPDT, 10 A, 12 VDC

Automation > Switching relay
LY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron LY2 12VDC is an electromechanical plug-in relay engineered for general control circuits and industrial automation switching tasks. Such components provide reliable galvanic isolation and signal multiplication between low-voltage controllers and higher-load actuators.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarity free
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Plug-in connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 21.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 36 mm
  • Depth (EF000049): 28 mm
  • Nominal current (EF000001): 10 A

More info

▲
Mounting methodWith plug-in socketUsageGeneral purpose, High powerPoles2Rated carry current10 ACoil voltage12 VOperation voltageDCContact materialAg alloyContact descriptionDPDTFeaturesTransparent caseTerminal typePlug-in
