View larger
Images are for illustrative purposes only. Please refer to data sheet for details

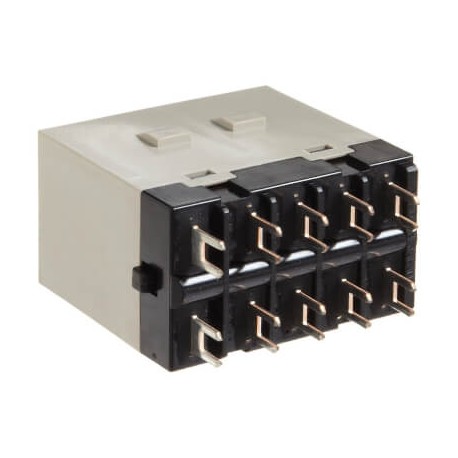

G7J-3A1B-P 24VDC G7J 1003B G7J3A1BP24DC OMRON 3NA + 1NC 25A
G7J-3A1B-P 24VDC
G7J 1003B
G7J3A1BP24DC
OMRON
20 Pcs.
3NA + 1NC 25A
Power relay, PCB mounting, 3PST-NO/SPST-NC, 25 A, 24 VDC
Automation > Switching relay
G7 Power
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Mounting methodPCBUsageHigh powerPoles4Rated carry currentNC: 8 A, NO: 25 ACoil voltage24 VOperation voltageDCContact materialAg alloyContact description3PST-NO/SPST-NCTerminal typePCB
| Feature Name | Feature Value |
|---|---|
| Type of switch contact (EF003358) | Single contact |
| Degree of protection (IP) (EF005474) | Other |
| Drive, polarization (EF003355) | Polarity free |
| Voltage type for actuating (EF008242) | DC |
| Type of electric connection (EF003961) | PCB connection |
| Drive, switching attitude (EF003356) | Mono stable |
| With detachable clamps (EF003340) | No |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | No |
| With forced-guided contacts (EF003357) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 3 |
| Width (EF000008) | 33.5 mm |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Height (EF000040) | 51 mm |
| Depth (EF000049) | 51.5 mm |
| Nominal current (EF000001) | 25 A |
| Rated control supply voltage DC (EF003980) | 24 V |
