OMRON NX-EC0142 NX-EC0142 NX020064M NXEC0142 OMRON Unit NX 1 Input Encoder Line Driver PNP Incremental View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-EC0142 NX020064M NXEC0142 OMRON Unit NX 1 Input Encoder Line Driver PNP Incremental

NX-EC0142

NX020064M

NXEC0142

OMRON

1 Pcs.

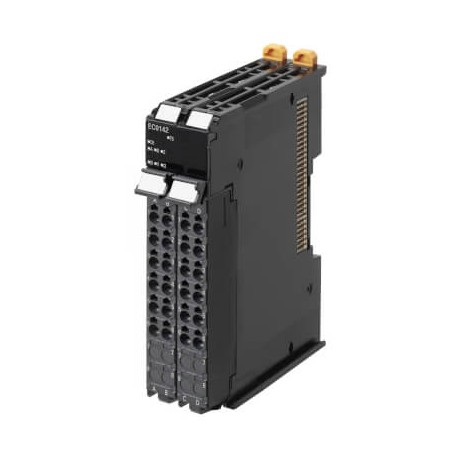

Unit NX - 1 Input Encoder Line Driver PNP Incremental 1 x Incremental Encoder Line driver Input, phases A and B: single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, PNP, screwless

Automation > Fieldbus, decentr. periphery - function-/technology module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron NX-EC0142 is a specialized encoder input unit built to process incremental PNP line driver signals within distributed control assemblies. Encoder units are widely used in industrial applications requiring precise position tracking, speed monitoring, and synchronized axis control. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Function block access control (EF007213): No
  • Radio standard UMTS (EF008525): No
  • Suitable for counting (EF003248): Yes
  • Function block affirm push button (EF007214): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Suitable for weighing (EF003249): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Suitable for SSI (EF003254): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Suitable for CNC (EF003256): No
  • Supporting protocol for SERCOS (EF006657): No
  • Suitable for detection absolute value (EF003259): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleEncoder inputDigital input typeIncremental encoder, Line driver (RS-422), PNPDigital output typeNoneSignal processingFree running, Synchronous, Task period prioritizedNumber of encoder input channels1Max. encoder input frequency4000 kHzNumber of pulse output channels0Max. pulse output frequency0 kHzIO-Link masterI/O connection typePush-inNumber of I/O connectors2Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneNumber of IOV (V+) terminals3Number of IOG (V-) terminals3Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)24 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)147 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
