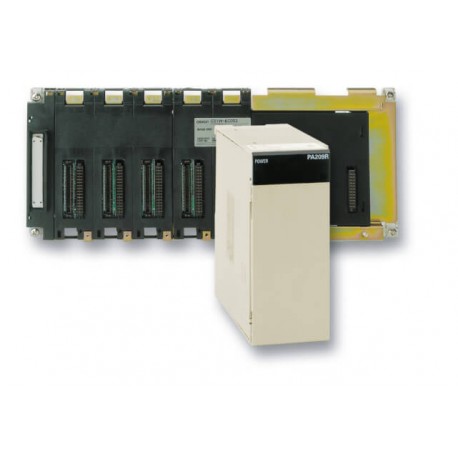

CS1D-II102D CS1D0027B CS1DII102D OMRON Expansion unit Expander for Dual Connection
CS1D-II102D
CS1D0027B
CS1DII102D
OMRON
1 Pcs.
Automation > Accessories/spare parts for controls
CS1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron CS1D-II102D expansion units serve as fundamental expanders for dual connection layouts in redundant PLC configurations. Control engineers implement these hardware modules to scale system architecture and maintain reliable communication across extensive industrial process controls. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- 19.2 to 28.8 VDC: 40 W max.
- 4.3 A: 0.56 A
- 55 VA max.: 5.3 A
- Power supply for dual-redundant system: CS1D-PD025
- 85 to 264 VAC 50/60 Hz: 120 VA max.
- Service output 24 VDC, 0.8 A: C200HW-PA204S
- Run status output (SPST relay): C200HW-PA204R
- 180 VA max.: 9.0 A
- 150 VA max.: 7.0 A
- CPU backplane: 2
- CPU backplane: 3
- CPU backplane: 5
- CPU backplane: 8
- CPU backplane: 10
- Expansion backplane: 3
- Expansion backplane: 5
