OMRON HPR2-100RD HPR2-100RD AA052816G HPR2100RD OMRON LED ring light, OD 116 mm, ID 66 mm, red, indirect, 24 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HPR2-100RD AA052816G HPR2100RD OMRON LED ring light, OD 116 mm, ID 66 mm, red, indirect, 24 VDC

HPR2-100RD

AA052816G

HPR2100RD

OMRON

1 Pcs.

LED ring light, OD=116 mm, ID=66 mm, red, indirect, 24 VDC

Automation > Accessories/spare parts for sensor technology
Special

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

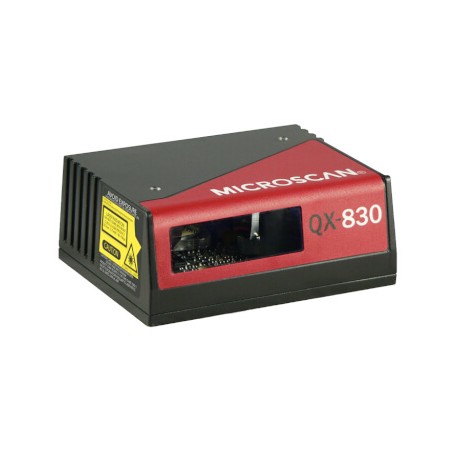

QX-830 Industrial Barcode Scanner

The QX-830 industrial barcode scanner combines revolutionary flexible connectivity with high performance decoding capabilities to reliably read 1D barcodes in almost any automation environment. In addition to the X-Mode technology, the QX-830 features IP54 industrial sealing and embedded Ethernet protocols.

High performance, simple connectivity, and IP54 enclosure make the QX-830 an ideal industrial barcode scanner for any industrial application.

  • Scans/second: 300 to 1400
  • Read range: 25 to 762 mm
  • Embedded Ethernet TCP/IP & EtherNet/IP
  • IP54 enclosure

X-Mode Technology:
Decodes damaged, poorly printed, or misaligned codes. Ensures high read rates and throughput.

High Performance:
Aggressive decoding capabilities allow reliable reading of barcodes out to 762 mm, at up to a 254 mm beam width.

Real-time Feedback:
Visible LED indicators on the side of the scanner and a “good read” green flash projecting from the front window provide confirmation of the scanner’s performance. The green flash is visible within a complete 360 degree radius from the scanner.

Ethernet Protocols:
The QX-830 includes embedded Ethernet TCP/ IP and EtherNet/IP for high speed communication.

Flexibility:
The compact size of the QX-830 allows flexible positioning for a variety of applications.

Ordering information

Description

Order code

QX-830, Industrial Barcode Reader, Single Line, Low Density, Serial+Ethernet

FIS-0830-1001G

QX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial+Ethernet

FIS-0830-1002G

QX-830, Industrial Barcode Reader, Single Line, High Density, Serial+Ethernet

FIS-0830-1003G

QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial+Ethernet

FIS-0830-1004G

QX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial+Ethernet

FIS-0830-1005G

QX-830, Industrial Barcode Reader, Raster Line, High Density, Serial+Ethernet

FIS-0830-1006G

Specifications

Mechanical

Depth

66 mm (2.59")

Width

88 mm (3.47")

Height

35 mm (1.38")

Weight

212 g (7.5 oz.)

Communication Interface

RS-232 and Ethernet

Symbologies

Standard

Code 39, Codabar, Code 93, Interleaved 2 of 5, Code 128, PDF417, Micro PDF417, Pharmacode, UPC, GS1 Databar

Applications Standard

UCC/EAN-128, AIAG

Laser Light

Type

Laser diode

Output Wavelength

655 nm nominal

Operating Life

50,000 hours @ 25° C

Safety Class

Visible laser: CDRH Class II, 655 nm

Scanning Parameters

Mirror Type

Rotating, 10-faceted

Optional Raster Mirror Image

10 raster scan lines over a 2° arc (or 12.7 mm raster height at 203 mm (8") distance)

Scan Rate

Adjustable from 300 to 1400 scans/sec; default is 500 scans/sec

Scan Width Angle

Typically 60°

Pitch

±50° max.

Skew

±40° max.

Label Contrast

25% min. Contrast at 655 nm wavelength

Protocols

Point-to-Point, Ethernet TCP/IP, EtherNet/IP
