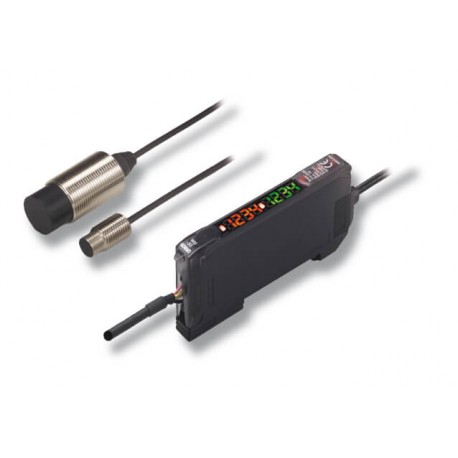

OMRON E2C-EDA41 2M E2C-EDA41 2M 176687 E2CEDA412M OMRON Amplifier PNP Double output

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

E2C-EDA41 2M 176687 E2CEDA412M OMRON Amplifier PNP Double output

Name: E2C-EDA41 2M 176687 E2CEDA412M OMRON Amplifier PNP Double output
Brand: OMRON
SKU: 176687

Reference: E2C-EDA41 2M

Code: 176687

Catalog Number: E2CEDA412M

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Amplifier PNP Double output PNP Amplifier Dual Output

Categories:
Automation > Accessories/spare parts for sensor technology
Other Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Typically several hundred µm detection precision
Precision distance teaching
Window function (2 outputs) for production tolerance checks

Specifications & ordering info

Ordering information

Sensor heads

			Sensing distance	Repeat accuracy	Order code
3 dia. × 18	¢	-	0.6 mm	1 µm	E2C-EDR6-F
5.4 dia. × 18			1 mm	1 µm	E2C-ED011
8 dia. × 22			2 mm	2 µm	E2C-ED021
M10 × 22			2 mm	2 µm	E2C-EM021
30 × 14 × 4.8			5 mm	2 µm	E2C-EV051
M18 × 46.3	-	¢	7 mm	5 µm	E2C-EM07M1
M12 × 22	¢	-	2 mm	2 µm	E2C-EM02H

Amplifier units with cables

Item	Functions	Order code
Item	Functions	NPN output	PNP output
Twin-output models	Area output, open circuit detection, differential operation	E2C-EDA11	E2C-EDA41
External-input models	Remote setting, differential operation	E2C-EDA21	E2C-EDA51

Amplifier units with connectors2

Item	Functions	Order code
Item	Functions	NPN output	PNP output
Twin-output models	Area output, open circuit detection, differential operation	E2C-EDA6	E2C-EDA8
External-input models	Remote setting, differential operation	E2C-EDA7	E2C-EDA9

Specifications

Sensor heads

Item		3 dia.	5.4 dia.	8 dia.	M10	M18	30×14×4.8 mm	M12
Item		E2C-EDR6-F	E2C-ED01(-_ )	E2C-ED02(-_ )	E2C-EM02(-_ )	E2C-EM07(-_ )	E2C-EV05(-_ )	E2C-EM02H
Ambient temperature	Operating	-10 to 60°C (with no icing or condensation)						-10 to 200°C
Ambient temperature	Storage	-10 to 60°C (with no icing or condensation)						-10 to 200°C
Degree of protection		IEC60529 IP67						IEC60529 IP60
Material	Case	Brass	Stainless steel	Brass			Zinc	Brass
Material	Sensing surface	Heat-resistant ABS						PEEK

Note: For amplifier specifications refer to complete datashee

1.For models with cut-to-length cables add “-F” for example E2C-ED01-F
For models with protective stainless steel spiral tubes add “-S” for example E2C-ED01-S

2.Order fitting connector (E3X-CN21_) separately from accessories.
