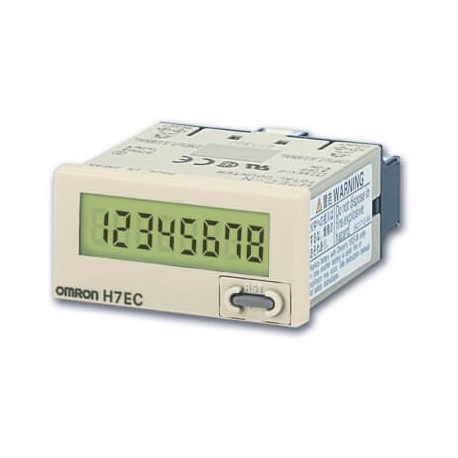

H7EC-NV-H H7E 8004M H7ECNVHOMI OMRON Totalizer LCD ilum gray background 30Hz-1kHz
H7EC-NV-H
H7E 8004M
H7ECNVHOMI
OMRON
10 Pcs.
Totalizer LCD ilum gray background 30Hz-1kHz
Total counter, 1/32DIN (48 x 24 mm), self-powered, LCD with backlight, 8-digit, 30cps/1kcps, VDC input, grey case
Automation > Impulse meter for installation
H7EC/R/T
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeTotalisingSize1/32 DIN (48 x 24 mm)Counting range0 - 99999999LCD backlightWith backlightNumber of digits8Body colorLight greyInstallation typeOn-panelTerminal typeScrewInputsDC voltageSupply voltage DC24-24 VSpeed1000 HzProduct Width (unpacked)48 mmProduct Height (unpacked)24 mmProduct Depth (unpacked)48.5 mmRelay output0
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | Other |
| Model (EF000010) | DIN rail |
| Measuring mechanism (EF005015) | Digital |
| With reset function (EF006704) | Yes |
| Modular version (EF001126) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Number of digits (EF005555) | 8 |
| Width in number of modular spacings (EF002950) | 2.7 |
| Width (EF000008) | 48 mm |
| Accuracy class (EF001532) | 99999999 |
| Power loss (EF005387) | 0.3 W |
| Height (EF000040) | 24 mm |
| Frequency input voltage (EF005735) | 1000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Input voltage DC (EF007120) | 24 V |
