View larger
Images are for illustrative purposes only. Please refer to data sheet for details

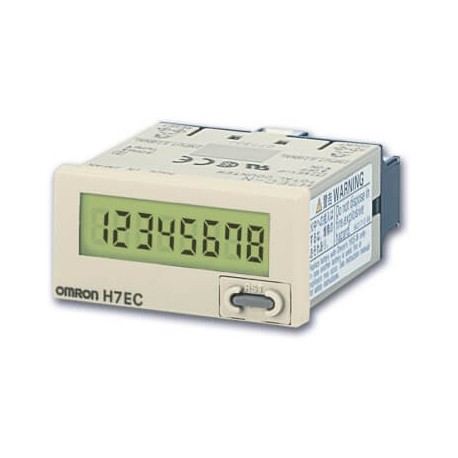

H7EC-N H7E 8000H H7ECNOMI OMRON Totalizer LCD Gray 30Hz Ent. without voltage 24x48
H7EC-N
H7E 8000H
H7ECNOMI
OMRON
10 Pcs.
Totalizer LCD Gray 30Hz Ent. without voltage 24x48
Total counter, 1/32DIN (48 x 24 mm), self-powered, LCD, 8-digit, 30cps/1kcps, no-V input, grey case
Automation > Impulse meter for installation
H7EC/R/T
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeTotalisingSize1/32 DIN (48 x 24 mm)Counting functionsTotal countCounting range0 - 99999999LCD backlightWithout backlightNumber of digits8Body colorLight greyInstallation typeOn-panelTerminal typeScrewInputsNo-voltageSpeed1000 HzProduct Width (unpacked)48 mmProduct Height (unpacked)24 mmProduct Depth (unpacked)48.5 mmRelay output0
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | Other |
| Model (EF000010) | DIN rail |
| Measuring mechanism (EF005015) | Digital |
| With reset function (EF006704) | Yes |
| Modular version (EF001126) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Number of digits (EF005555) | 8 |
| Width in number of modular spacings (EF002950) | 2.7 |
| Width (EF000008) | 48 mm |
| Accuracy class (EF001532) | 99999999 |
| Height (EF000040) | 24 mm |
| Frequency input voltage (EF005735) | 1000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
