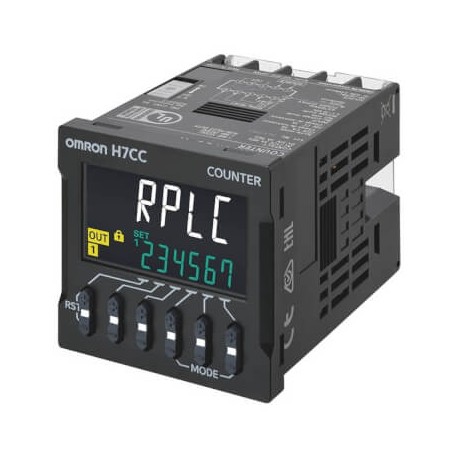

OMRON H7CC-AWSD H7CC-AWSD H7CC7020C H7CCAWSD OMRON Digital counter, screw terminals, 48x48 mm, IP66, 6 count digits, multifu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H7CC-AWSD H7CC7020C H7CCAWSD OMRON Digital counter, screw terminals, 48x48 mm, IP66, 6 count digits, multifu..

H7CC-AWSD

H7CC7020C

H7CCAWSD

OMRON

1 Pcs.

Digital counter, screw terminals, 48x48 mm, IP66, 6 count digits, multifunction: 1&2-stage, total, batch, dual, twin counter, tachometer, DPST transis Digital counter, screw terminals, 48x48 mm, IP66, 6 count digits, multifunction: 1&2-stage, total, batch, dual, twin counter, tachometer, DPST transistor output, 12-48 VDC / 24 VAC supply, 12 VDC aux. supply

Automation > Impulse meter for installation
H7CX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The H7CC-AWSD H7CC7020C H7CCAWSD OMRON Digital counter, screw terminals, 48x48 mm, IP66, 6 count digits, multifu.. acts as an advanced electronic timing and counting device engineered to execute complex control logic based on pulse inputs. Systems integrators deploy these versatile digital units to manage automated processes, batch limits, and output totals in factory environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): AC/DC
  • Model (EF000010): Front mounting
  • Measuring mechanism (EF005015): Digital
  • With reset function (EF006704): Yes
  • Modular version (EF001126): No
  • Number of digits (EF005555): 6
  • Width in number of modular spacings (EF002950): 2.7
  • Width (EF000008): 48 mm
  • Power loss (EF005387): 3.3 W
  • Height (EF000040): 48 mm
  • Frequency input voltage (EF005735): 30 Hz
  • Input voltage AC 50 Hz (EF007118): 20.4 V
  • Input voltage AC 60 Hz (EF007119): 20.4 V
  • Input voltage DC (EF007120): 12 V

More info

▲
TypePre-set counterSize1/16 DIN (48 x 48 mm)Counting functions1-stage counter, 1-stage counter with batch counter, 1-stage counter with total counter, 2-stage counter, Dual counter (addition/subtraction), Tachometer, Twin counterCounting range-99999 - 999999LCD backlightWith backlightNumber of digits6Body colorBlackInstallation typeOn-panelTerminal typeScrewOutput typeTransistorRelay output0Transistor output1InputsDC voltage, No-voltageSupply voltage AC20.4-26.4 VSupply voltage DC12-48 VSpeed10000 HzProduct Width (unpacked)48 mmProduct Height (unpacked)48 mmProduct Depth (unpacked)59 mm
