View larger
Images are for illustrative purposes only. Please refer to data sheet for details

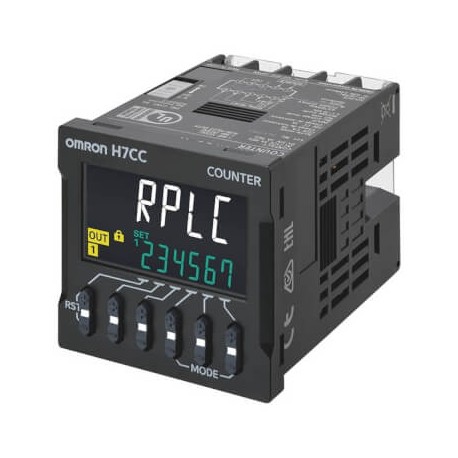

H7CC-ASD H7CC7012B H7CCASD OMRON Digital counter, plug-in, screw terminals, 48x48 mm, IP66, 6 count digits, ..
H7CC-ASD
H7CC7012B
H7CCASD
OMRON
1 Pcs.
Digital counter, plug-in, screw terminals, 48x48 mm, IP66, 6 count digits, multifunction: 1-stage & total present counter, SPST transistor output, 12
Digital counter, plug-in, screw terminals, 48x48 mm, IP66, 6 count digits, multifunction: 1-stage & total present counter, SPST transistor output, 12-48 VDC / 24 VAC supply, 12 VDC aux. supply
Automation > Impulse meter for installation
H7CX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypePre-set counterSize1/16 DIN (48 x 48 mm)Counting functions1-stage counter, 1-stage counter with total counterCounting range-99999 - 999999LCD backlightWith backlightNumber of digits6Body colorBlackInstallation typeOn-panelTerminal typeScrewOutput typeTransistorRelay output0Transistor output1InputsDC voltage, No-voltageSupply voltage AC20.4-26.4 VSupply voltage DC12-48 VSpeed10000 HzProduct Width (unpacked)48 mmProduct Height (unpacked)48 mmProduct Depth (unpacked)59 mm
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | AC/DC |
| Model (EF000010) | Front mounting |
| Measuring mechanism (EF005015) | Digital |
| With reset function (EF006704) | Yes |
| Modular version (EF001126) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of digits (EF005555) | 6 |
| Width in number of modular spacings (EF002950) | 2.7 |
| Width (EF000008) | 48 mm |
| Power loss (EF005387) | 3.3 W |
| Height (EF000040) | 48 mm |
| Frequency input voltage (EF005735) | 30 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Input voltage AC 50 Hz (EF007118) | 20.4 V |
| Input voltage AC 60 Hz (EF007119) | 20.4 V |
| Input voltage DC (EF007120) | 12 V |
