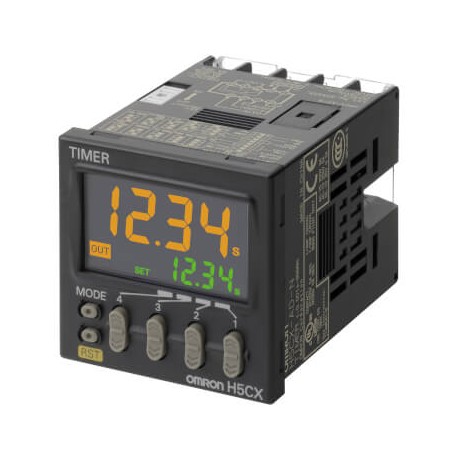

OMRON H5CX-L8SD-N H5CX-L8SD-N H5CX6011M H5CXL8SDNOMI OMRON SPDT Basic 12-24Vdc/24Vac Octal Transistor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H5CX-L8SD-N H5CX6011M H5CXL8SDNOMI OMRON SPDT Basic 12-24Vdc/24Vac Octal Transistor

H5CX-L8SD-N

H5CX6011M

H5CXL8SDNOMI

OMRON

1 Pcs.

SPDT Basic 12-24Vdc/24Vac Octal Transistor Timer, plug-in, 8-pin, DIN48x48mm, IP66, 4 preset & 4 actual time digits, multi range 0.01s to 9999h (10 ranges), economy model, NPN/PNP/No voltage input selectable, 100mA 30VDC NPN transistor output, 12-24VDC/24VAC supply Timer, plug-in, 8-pin, DIN48x48mm, IP66, 4 preset & 4 actual time digits, multi range 0.01s to 9999h (10 ranges), economy model, NPN/PNP/No voltage in

Automation > Timer relay
H5CX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron H5CX-L8SD-N is a digital timer equipped with transistor outputs, designed for high-frequency switching tasks in factory automation and high-speed counting applications. Engineers integrate these precision units into control panels to govern strict operational timeframes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Digital
  • Installation type: DIN Rail, On-panel, Socket
  • Functions: Multi-functional
  • Size: 1/16 DIN (48 x 48 mm)
  • Terminal: Plug-in
  • Output type: Transistor
  • Time range: 0.001 s - 9999 h
  • Supply voltage AC: 24-24 V
  • Supply voltage DC: 12-24 V
  • Number of pin contact: 8
  • Inputs: Reset (NPN), Signal (NPN)
  • Degree of protection (IP): IP66
  • Voltage type (operating voltage): DC
  • Voltage type for actuating: AC/DC
  • Type of electric connection: Screw connection
  • Function delay on de-energization: Yes

More info

▲

Specifications

TypeDigital
Installation typeDIN Rail, On-panel, Socket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
TerminalPlug-in
Output typeTransistor
Time range0.001 s - 9999 h
Supply voltage AC24-24 V
Supply voltage DC12-24 V
Number of pin contact8
InputsReset (NPN), Signal (NPN)
