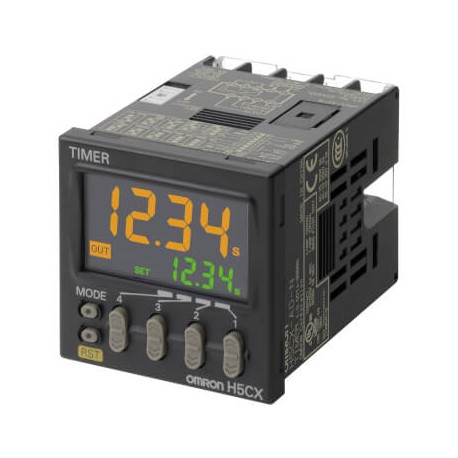

OMRON H5CX-L8E-N H5CX-L8E-N H5CX6038B H5CXL8ENOMI OMRON SPDT Basic 100-240Vac Octal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H5CX-L8E-N H5CX6038B H5CXL8ENOMI OMRON SPDT Basic 100-240Vac Octal

H5CX-L8E-N

H5CX6038B

H5CXL8ENOMI

OMRON

1 Pcs.

SPDT Basic 100-240Vac Octal Timer, plug-in, 8-pin, DIN 48x48 mm, economy model, Contact output (time-limit SPDT + instantaneous SPDT), None NPN inputs, 100 to 240 VAC supply

Automation > Timer relay
H5CX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for straightforward panel integration, the Omron H5CX-L8E-N digital timer delivers dependable interval timing for electrical control panels. Panel-mounted digital timers are widely employed to direct complex machine cycles, monitor operating hours, and sequence interdependent loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Digital
  • Installation type: DIN Rail, On-panel, Socket
  • Functions: Multi-functional
  • Size: 1/16 DIN (48 x 48 mm)
  • Terminal: Plug-in
  • Output type: Relay
  • Contact description: 2 x SPDT
  • Time range: 0.001 s - 9999 h
  • Supply voltage AC: 100-240 V
  • Number of pin contact: 8
  • Features: Instantaneous contact
  • Degree of protection (IP) (EF005474): IP66
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Material of contact surface (EF004020): Untreated
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electric connection (EF003961): Screw connection

More info

▲

Specifications

TypeDigital
Installation typeDIN Rail, On-panel, Socket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
TerminalPlug-in
Output typeRelay
Contact description2 x SPDT
Time range0.001 s - 9999 h
Supply voltage AC100-240 V
Number of pin contact8
FeaturesInstantaneous contact

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
