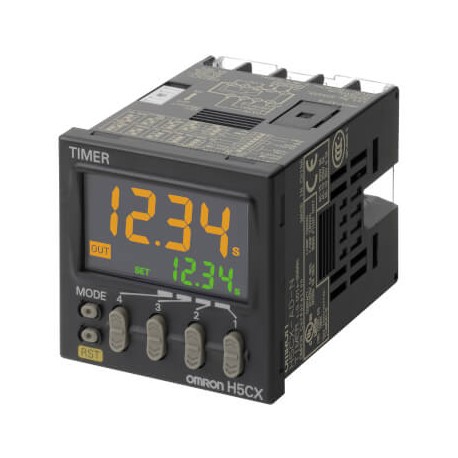

OMRON H5CX-L8-N H5CX-L8-N H5CX6008M H5CXL8NOMI OMRON SPDT Basic 100-240Vac Octal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H5CX-L8-N H5CX6008M H5CXL8NOMI OMRON SPDT Basic 100-240Vac Octal

H5CX-L8-N

H5CX6008M

H5CXL8NOMI

OMRON

1 Pcs.

SPDT Basic 100-240Vac Octal Timer, plug-in, 8-pin, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), economy model, NPN/PNP/No voltag Timer, plug-in, 8-pin, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), economy model, NPN/PNP/No voltage input selectable, SPDT 5 A relay output, 100-240 VAC supply

Automation > Timer relay
H5CX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron H5CX-L8-N digital timer provides high-precision time measurement and control for automated industrial applications. Digital timing devices are deployed in processes that demand exact cycle control, batch counting, and repeatable timing intervals across automated production environments.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Digital
  • Installation type: DIN rail, On-panel, Socket
  • Functions: Multi-functional
  • Size: 1/16 DIN (48 x 48 mm)
  • Terminal type: Plug-in
  • Output type: Relay
  • Contact description: SPDT
  • Time range: 0.001 s - 9999 h
  • Supply voltage AC: 100-240 V
  • Number of pin contact: 8
  • Inputs: Reset (NPN), Signal (NPN)
  • Degree of protection (IP) (EF005474): IP66
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Material of contact surface (EF004020): Untreated
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electric connection (EF003961): Screw connection

More info

▲

Specifications

TypeDigital
Installation typeDIN rail, On-panel, Socket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Output typeRelay
Contact descriptionSPDT
Time range0.001 s - 9999 h
Supply voltage AC100-240 V
Number of pin contact8
InputsReset (NPN), Signal (NPN)

Accessories

P3G-08Socket, back-connecting, 8-pin, screw terminals
Y92A-48Protective cover for DIN48x48mm device, hard plastic (shallow)
Y92A-48F1Protective cover for DIN 48 x 48 mm timer and counter, soft plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-45Panel adaptor, 48 x 48 device into 67 x 67 hole
Y92S-29Waterproof packing for use with 48x48mm devices and Y92F30 flush mounting adapter

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
