> OMRON > Timers > H5CX > H5CX6030G

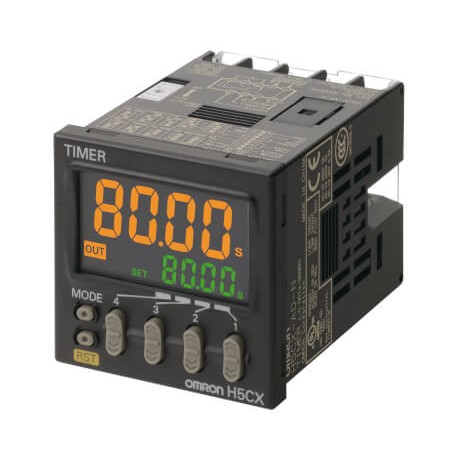

OMRON H5CX-BWSD-N H5CX-BWSD-N H5CX6030G H5CXBWSDNOMI OMRON Output transistor 2-Stage 6 dig. 12-24vdc/24vac Screw View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H5CX-BWSD-N H5CX6030G H5CXBWSDNOMI OMRON Output transistor 2-Stage 6 dig. 12-24vdc/24vac Screw

H5CX-BWSD-N

H5CX6030G

H5CXBWSDNOMI

OMRON

1 Pcs.

Output transistor 2-Stage 6 dig. 12-24vdc/24vac Screw Transistor Output 2 Stages 6 Dig. 12-24Vdc/24Vac Screw Timer, DIN48x48mm, IP66, 6 preset & 6 actual time digits, multi range 0.01s to 99999.9h (4 ranges), 2-function, NPN/PNP/No voltage input selectable, 1

Automation > Timer relay
H5CX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

The most complete digital standard timer on the market

H5CX offers you the most complete series of products on the market today. Based on extensive customer research, these new timers have been designed with added-value features that users both need and appreciate.

  • H 48 x W 48 x D 59 to 78mm
  • Three-colour display value, red, green or orange
  • Models with Instantaneous Contact Outputs
  • 0.001 s to 9999 h, 10 ranges
  • Input NPN, PNP and contact

Sealed timers

The front of the H5CX is NEMA4X (IP66 equivalent) so it is sealed against the ingress dust and water. This means that they can be used in many applications that other timers can not. Easily adjustable through the front keys or for more security the keys can be disabled to prevent malicious or accidental tampering. Simple settings can be made either via dip switches or a simple to follow menu structure to suite the installer.

Harsh environment

Control products can be subjected to harsh environments where they can be splashed during the process or covered in dust or get warm through their location. The E5CN, E5CSV, H7CX, H5CX and K3HB all feature a NEMA4X (IP66 equivalent) front panels so are suitable for the use in these applications, also the low profile fascia means that they are less prominent in the front of the panel and so less likely to become dirty.

Ordering information

Output type

Supply voltage

Functions

External connection

Size in mm (H×W×D)

Inputs

Order code

Contact output

100 to 240 VAC

A:Signal ON-delay
A-1:Signal ON-delay 2
A-2:Power ON-delay 1
A-3:Power ON-delay 2
b:Repeat cycle 1
b-1:Repeat cycle 2
d:Signal OFF-delay
E:Interval
F:Cumulative
Z:ON/OFF-duty adjustable flicker

toff:Twin timer OFF start
ton:Twin timer ON start

Screw terminals

48×48×84

Signal, Reset, Gate (NPN/PNP inputs)

H5CX-A-N

12 to 24 VDC/24 VAC

48×48×65

H5CX-AD-N

Transistor output

100 to 240 VAC

48×48×84

H5CX-AS-N

12 to 24 VDC/24 VAC

48×48×65

H5CX-ASD-N

Contact output

100 to 240 VAC

11-pin socket

48×48×69.7

Signal, Reset, Gate (NPN/PNP inputs)1

H5CX-A11-N

12 to 24 VDC/24 VAC

H5CX-A11D-N

Transistor output

12 to 24 VDC/24 VAC

H5CX-A11SD-N

Contact output

100 to 240 VAC

8-pin socket

48×48×69.7

Signal, Reset (NPN inputs)1

H5CX-L8-N

12 to 24 VDC/24 VAC

H5CX-L8D-N

Transistor output

12 to 24 VDC/24 VAC

H5CX-L8SD-N

Contact output

Models with instantaneous contact outputs

100 to 240 VAC

A-2:Power ON-delay 1
b:Repeat cycle 1
E:Interval
Z:ON/OFF-duty adjustable flicker

toff:Twin timer OFF start 1
ton:Twin timer ON start 1

−

H5CX-L8E-N

12 to 24 VDC/24 VAC

H5CX-L8ED-N

Transistor output

12 to 24 VDC

A:Signal ON-delay 1
F:Cumulative

Screw terminals

48×48×65

Signal, Reset, Gate (NPN/PNP inputs)

H5CX-BWSD-N

Accessories

Name

Order code

Flush-mounting adapter

Y92F-30

Waterproof packing

Y92S-29

Front-connecting socket

8-pin, finger safe type

P2CF-08-E

11-pin, finger safe type

P2CF-11-E

Back-connecting socket

8-pin

P3G-08

11-pin

P3GA-11

Hard cover

Y92A-48

Soft cover

Y92A-48F1

Front panels
(4-digit models)

Light gray

Y92P-CXT4G

White

Y92P-CXT4S

Specifications

Item

H5CX-A_

H5CX-A11_

H5CX-L8_

Display

7-segment, negative transmissive LCD

Present value: 12 mm high characters

red, orange or green (programmable)

red

Set value: 6 mm high characters, green

Digits

4 digits

Total time range

0.001 s to 9,999 h (configurable)

Timer mode

Elapsed time (Up), remaining time (Down) (selectable)

Input signals

Signal, reset, gate

Signal, reset

Key protection

Yes

Memory backup

EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min.

Ambient temperature

Operating: −10 to 55°C (no icing or condensation), side-by-side mounting: −10 to 50°C

Case color

Black (N1.5)
1.There are other models available on request. Please contact your Omron representative for special request.

ETIM for 668631 Relays (EC001439)
Feature Name Feature Value
Relay technology category according to IEC 61810-7 (EF016748) RT I
Material of contact insert (EF008521) Other
Degree of protection (IP) (EF005474) IP66
Voltage type (operating voltage) (EF005294) DC
Material of contact surface (EF004020) Other
Voltage type for actuating (EF008242) DC
Material contact (EF007544) Other
Suitable as remote control (EF003362) No
Suitable for DIN rail (top hat rail) mounting (EF007250) No
Complete with socket (EF003359) Yes
Clock function, starting with pause, variable (EF003365) No
With semiconductor output (EF003373) Yes
Suitable for front mounting (EF020288) Yes
Clock function, starting with pulse, variable (EF003366) Yes
Remote operation possible (EF003361) No
Width (EF000008) 48 mm
Height (EF000040) 48 mm
Nominal current (EF000001) 0.1 A
Operating voltage DC (EF008208) 1.5 V
Rated control supply voltage DC (EF003980) 12 V
