> OMRON > Timers > H5CX > H5CC0001B

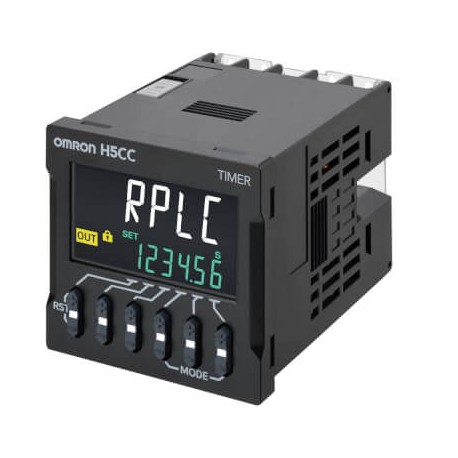

OMRON H5CC-A H5CC-A H5CC0001B H5CCA OMRON Timer, DIN 48x48 mm, standard type, screw terminals, No-voltage (NPN) input/vol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H5CC-A H5CC0001B H5CCA OMRON Timer, DIN 48x48 mm, standard type, screw terminals, No-voltage (NPN) input/vol..

H5CC-A

H5CC0001B

H5CCA

OMRON

1 Pcs.

Timer, DIN 48x48 mm, standard type, screw terminals, No-voltage (NPN) input/voltage (PNP) input (switchable), Contact output (time-limit SPDT), 100 to 240 VAC supply

Automation > Timer relay
H5CX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
TypeDigitalInstallation typeOn-panelFunctionsMulti-functionalSize1/16 DIN (48 x 48 mm)Terminal typeScrewOperating modeFlicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Power ON Start), ON Delay (Signal Start), Signal ON/OFF DelayOutput typeRelayContact descriptionSPDTSupply voltage AC100-240 VInputsGate (NPN/PNP), Reset (NPN/PNP), Signal (NPN/PNP)
ETIM for 720495 Relays (EC001439)
Feature Name Feature Value
Relay technology category according to IEC 61810-7 (EF016748) RT I
Material of contact insert (EF008521) Other
Degree of protection (IP) (EF005474) IP66
Voltage type (operating voltage) (EF005294) AC/DC
Material of contact surface (EF004020) Silver
Voltage type for actuating (EF008242) DC
Type of electric connection (EF003961) Screw connection
Material contact (EF007544) Other copper alloys
Function delay on de-energization (EF003401) No
Suitable as remote control (EF003362) No
Outputs, reversible delayed/undelayed (EF006988) No
Function pulse shaping (EF003403) Yes
Suitable for DIN rail (top hat rail) mounting (EF007250) No
Complete with socket (EF003359) No
Function star-delta (EF003380) No
Function floating contact on energization (EF003378) Yes
Clock function, starting with pause, variable (EF003365) No
Function flashing, starting with pulse, fixed time (EF003364) Yes
Function delay-on energization (EF003374) Yes
With semiconductor output (EF003373) No
Function floating contact on de-energization (EF003402) Yes
Function flashing, starting with pause, fixed time (EF003363) Yes
Suitable for front mounting (EF020288) Yes
Clock function, starting with pulse, variable (EF003366) Yes
Pluggable on auxiliary contact block (EF006952) No
Remote operation possible (EF003361) No
Number of outputs, delayed, normally open contact (EF006839) 0
Number of outputs, undelayed, normally open contact (EF006836) 0
Number of outputs, delayed, change-over contact (EF006840) 1
Number of outputs, delayed, normally closed contact (EF006838) 0
Number of outputs, undelayed, change-over contact (EF006837) 0
Width (EF000008) 48 mm
Number of outputs, undelayed, normally closed contact (EF006835) 0
Height (EF000040) 48 mm
Depth (EF000049) 63.7 mm
Nominal current (EF000001) 5 A
Rated control supply voltage AC 60 Hz (EF003979) 100 V
Operating voltage DC (EF008208) 5 V
Rated control supply voltage AC 50 Hz (EF003978) 100 V
Time range (EF003384) 0.001 s
Operating voltage AC 50 Hz (EF008206) 5 V
Operating voltage AC 60 Hz (EF008207) 5 V
